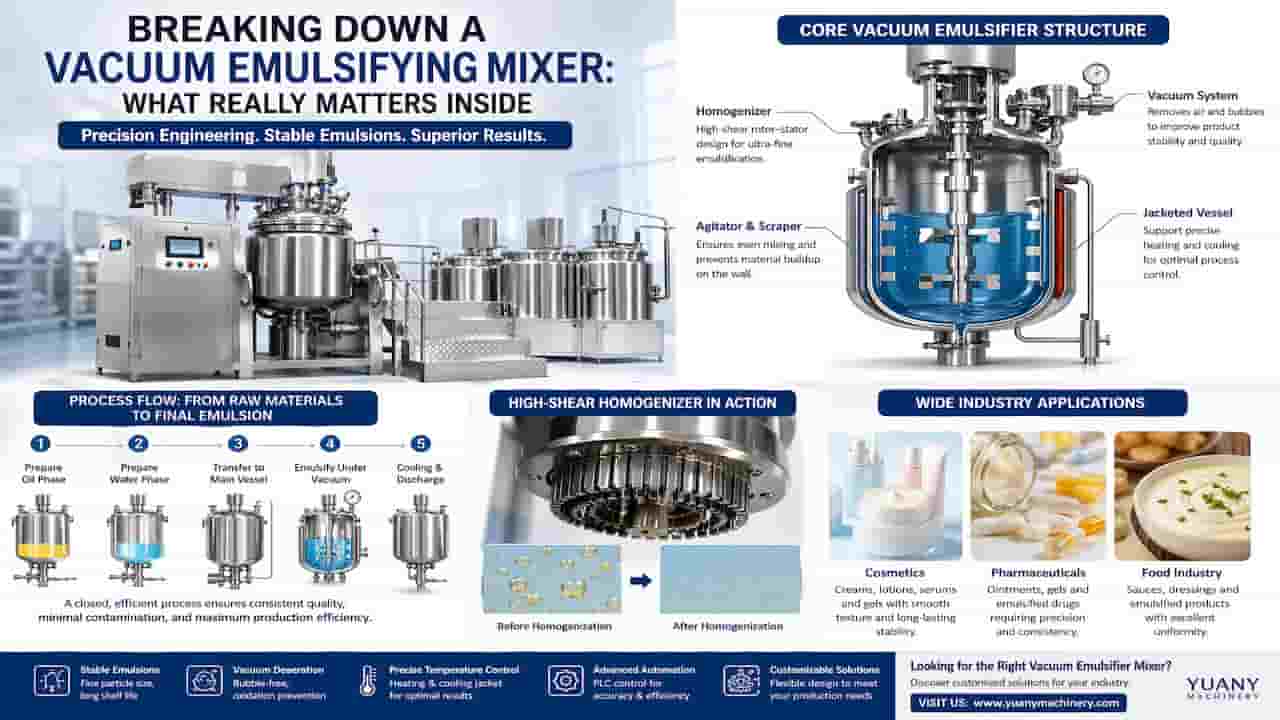

Breaking Down a Vacuum Emulsifying Mixer: What Really Matters Inside (Ultimate Industry Guide)

Introduction: Why Your Mixing Process Determines Your Profit

In modern industrial manufacturing, whether you are producing high-end skincare, medical ointments, or gourmet sauces, the challenge remains the same: How to achieve sub-micron emulsion stability without air entrapment?

Traditional mixing tanks often lead to product separation, excessive bubbles, or a grainy texture. This is where the advanced vacuum emulsifier structure becomes your most valuable asset. It is not just a mixing pot; it is a high-performance reaction platform that integrates high-shear force, vacuum de-aeration, and precision thermal management.

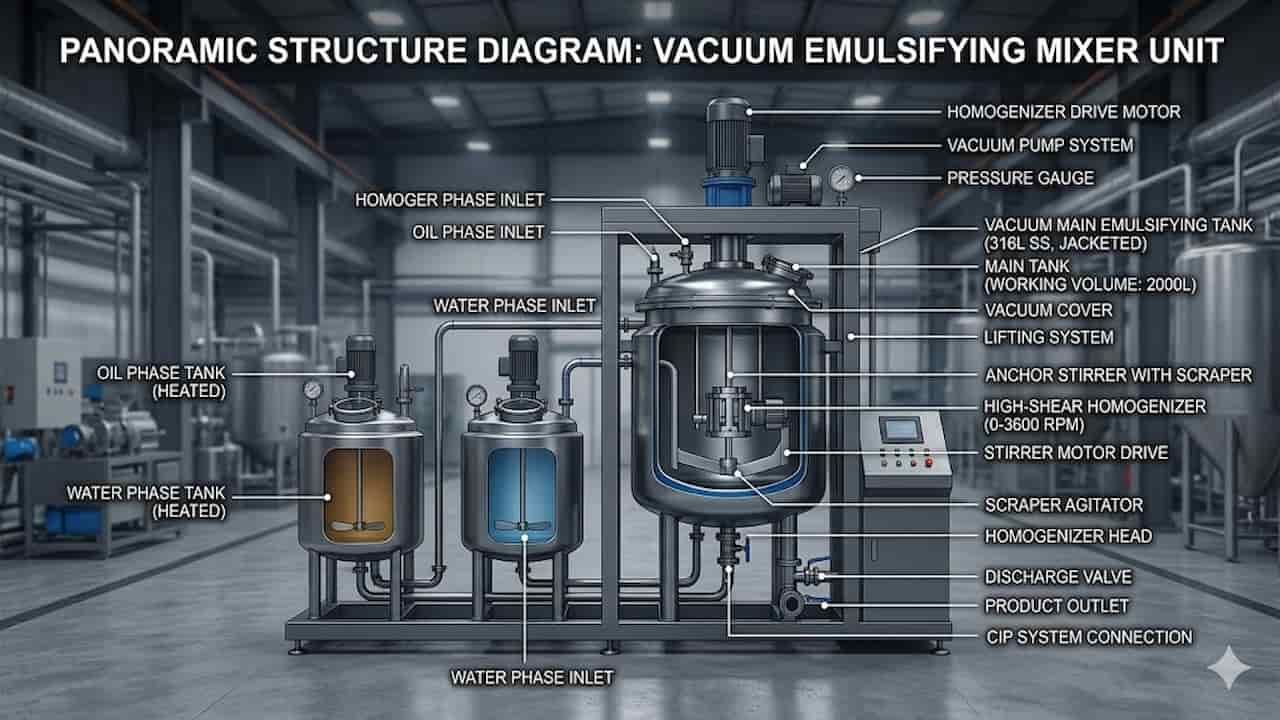

1. The Vessel Structure: Engineering for Global Compliance

The material and hygiene design of the vessel are the first steps in ensuring product safety and regulatory approval.

• The Engineering: All product-contact parts are constructed from SUS316L pharmaceutical-grade stainless steel, mirror-polished to Ra < 0.4μm.
• Industry Application: Pharmaceuticals: Meets strict GMP and FDA standards. For medicated ointments and sterile gels, our dead-zone-free design and integrated CIP (Clean-in-Place) systems prevent cross-contamination between batches. Cosmetics: The high corrosion resistance of SUS316L handles active acidic or alkaline ingredients in anti-aging creams and chemical exfoliants without leaching metal ions into the formula.

2. High-Shear Homogenization: Breaking the Physics of Separation

The homogenizer is the "engine" of the system. Its internal structure determines the final particle size and texture of your product.

• 1. Technical Detail: Utilizing a precision rotor-stator mechanism spinning at 3,600 RPM, it subjects the material to thousands of hydraulic shear events per second.
• 2. Industry Application: Food Industry: In the production of Mayonnaise or salad dressings, oil droplet size determines mouthfeel and shelf-life. Our high-shear system reduces oil droplets to 2–5 microns, achieving long-term stability without excessive chemical emulsifiers. Personal Care: Ensures that sunscreens and lotions have a silk-like texture and superior skin absorption.

3. Vacuum De-aeration: The Secret to Premium Gloss and Stability

Maintaining a vacuum level of -0.09 Mpa is critical for chemical and aesthetic integrity.

• 1. Technical Detail: By removing air during the homogenization phase, the system eliminates microscopic bubbles that are otherwise trapped in high-viscosity fluids.
• 2. Industry Application: Food Preservation: For plant-based milks or sauces, removing oxygen prevents lipid oxidation, naturally extending shelf life without added preservatives. Cosmetics & Pharma: Protects active ingredients like Retinol or Vitamin C from oxidizing and gives creams a dense, glossy, "premium" appearance.

4. Composite Agitation: Mastering High-Viscosity Challenges

Standard stirring is insufficient for "Non-Newtonian" fluids like toothpastes or heavy resins.

• Technical Detail: The structure features a frame-type wall scraper equipped with floating PTFE (Teflon) blades.
• Industry Application: High-Viscosity Gels: When processing materials up to 100,000 cps (e.g., hair pomades or industrial adhesives), the scrapers prevent material from "caking" on the walls. This ensures 100% heat transfer efficiency and prevents localized burning or degradation.

7 Key Insights for Industrial Buyers

1. Sub-Micron Precision: Achieve ultra-stable emulsions that standard batch mixers cannot replicate.
2. Full PLC Automation: Store hundreds of recipes to ensure Batch-to-Batch Consistency.
3. Hydraulic Lifting System: The lid can be raised effortlessly for deep cleaning, significantly reducing downtime.
4. Oil & Water Pre-treatment: Independent tanks disperse powders and melt waxes before vacuum-suction into the main pot, reducing batch time by 30%.
5. Mechanical Seal Reliability: Features double-end water-cooled mechanical seals for long-duration industrial runs without leaks.
6. Scalable Engineering: Process logic remains identical from 5L lab units to 2000L production lines.
7. Energy Efficiency: VFD-controlled motors reduce start-up current and long-term operational costs.

Comparison: Industry-Specific Configurations

Conclusion: Engineering Success for Your Brand

The internal structure of your vacuum emulsifier defines your product's performance on the shelf. YUANYANG Machinery is dedicated to providing high-end mixing solutions that meet international standards (CE, ISO, GMP). No matter how complex your formulation, our engineering team can customize a system to match your specific needs.

Optimize your production efficiency today.
