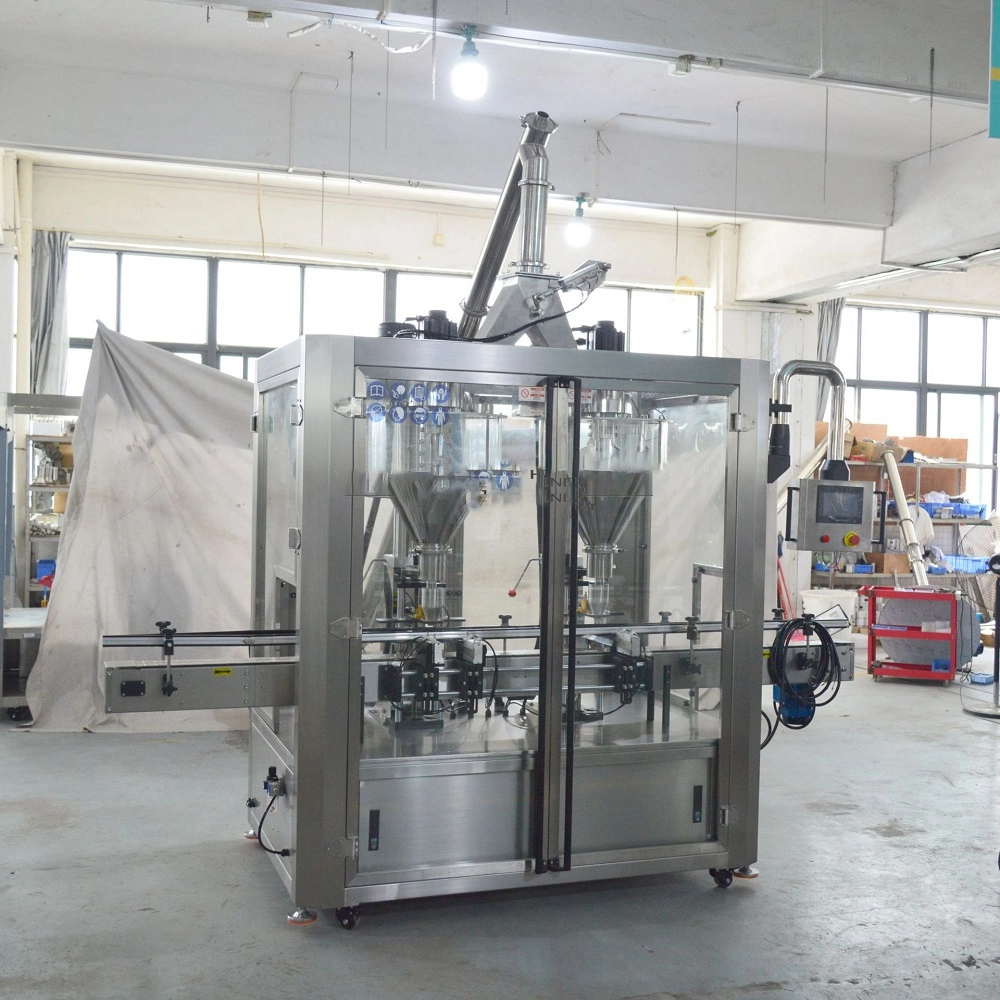

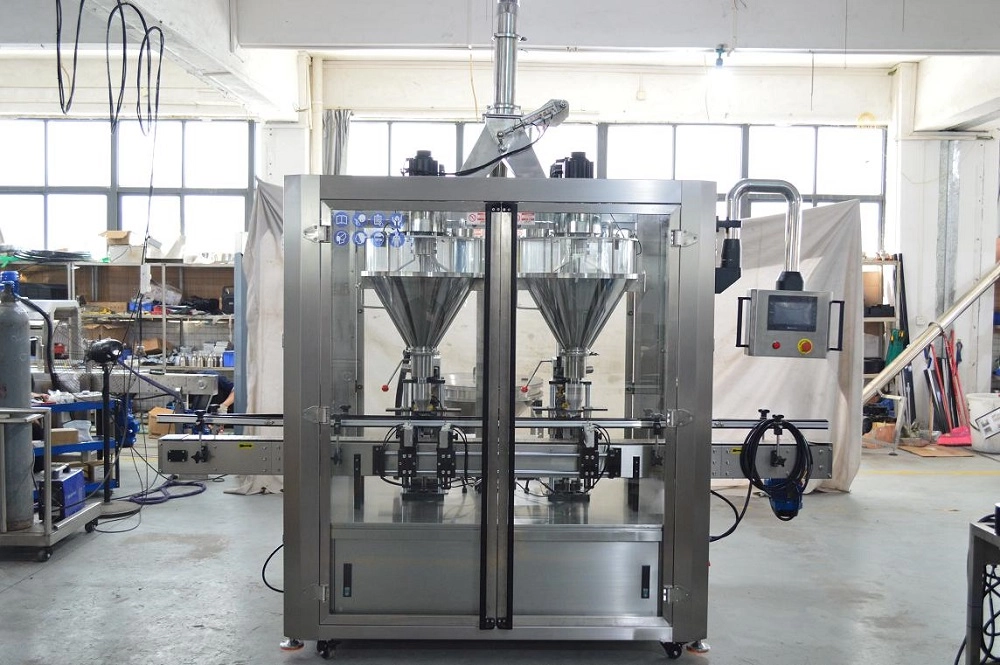

2 Heads Screw Powder Filling Machine
Yuanyang automatic auger filling machine is a common powder packing machine for continuous production, suitable for filling powder materials such as milk powder, coffee powder, and rice powder in food, medicine, daily necessities, and other industries.
Features:
⦁ PLC touch screen control;
⦁ Automated fast speed;
⦁ High filling precision.
Automatic Auger Filling Machine Introduction
The working principle of the automated powder filling machines is to push the material into the filling pipe through the rotation of the screw and then fill the material into the container through the filling pipe. The screw speed and propulsion force can be adjusted by the controller to suit different types of materials and containers.
The powder filling machines meet national GMP standards and can be combined with bottle sorting machines, cap feeders, capping machines, labeling machines, and other equipment for production lines.
Automatic Auger Filling Machine: key features
Automatic Auger Filling Machine specifications
| Automatic Auger Filling Machine | |||||
| Voltage | 380v 50hz | Suitable for | Powder materials | Filing system | Auger filling |
| Filling nozzle | 1 or 2 | Hopper | 50L with mixing paddle | Filling range | 5-1000g |
| Filling speed | 900-1800 pcs/hour | Contact material | Stainless steel 304 | Dimension | 200×120×200cm |
| Control method | PLC touch screen | Measurement precision | ±1% | Weight | 300kg |
| Optional function: covered frame; add automatic auger feeder or vacuum feeder ; add dust-free device to nozzle |
|||||
Automatic Auger Filling Machine General application
FAQs
Automatic auger filling machine
Is conveyor equipped together with the filling machine for powder?
Yes, the automatic powder filler machine is equipped with conveyor, which can be connected with other machines such as bottle sorting tables, capping machine, labeling machine and so on.
Can I replace the screw model of the auger filler to pack different weight in one machine?
Yes, we can customize different screw models for the powder filler, and the screw models are replaceable.
What’s the filling range of the screw powder packing machine?
The screw filling machine can fill from 5-1000g. But we need to customize according to specific weight that clients plan to pack. The screw model will be different.
What’s the maximum weight that the automatic powder packing machine pack?
The maximum filling weight is 1000g. For packing weight over 1000g, the semi automatic powder filler is recommended.
Is there a powder feeder for the powder dosing machine?
Yes, we have corresponding auger feeder for powder conveying. There is inlet port on the hopper to be connected with powder feeding machine.
The screw powder feeder is an option for client, which can achieve automatic adding materials and stop working with materials sensor installed in hopper.
Do you have semi automatic auger filling machine also? I have a limit budget.
Yes, both automatic type and semi automatic type are available, clients can choose the type according to budget and actual needs.
Can you tell me the filling range of each specific screw model for this powder bottle filling machine?
Model 25mm can fill 5-50g; model 38mm can fill 50-500g; model 75mm can fill 500-1000g.
Is the material hopper of the powder dispenser machine openable?
Yes, the visual hopper can be easy open and disassembled for easy cleaning and parts replacement.
Leave a message
Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.
Automatic Auger Filling Machine for Sale
Yuanyang automatic auger filling machine is a common powder packing machine for continuous production, suitable for filling powder materials such as milk powder, coffee powder, and rice powder in food, medicine, daily necessities, and other industries.
Features:
⦁ PLC touch screen control;
⦁ Automated fast speed;
⦁ High filling precision.
Semi Automatic Powder Dosing Machine for Sale
Yuanyang semi-automatic powder dosing machine is a multi-functional powder dispenser machine for bottles, cans, bags, or other containers. It is suitable for filling powder materials such as milk powder, coffee powder, and rice powder in food, medicine, daily necessities, and other industries.
Features:
⦁ PLC touch screen control;
⦁ Food-grade materials;
⦁ High filling precision.
Semi Automatic Powder Filling Machine for Sale
Yuanyang semi-automatic powder filling machine is a multiple-functional powder dispenser machine for bottles, cans, bags, or other containers. It is suitable for filling powder materials such as milk powder, coffee powder, and rice powder in food, medicine, daily necessities, and other industries.
Features:
⦁ PLC touch screen control;
⦁ Food-grade materials;
⦁ High filling precision.
50L Hydraulic Lift Vacuum Emulsifier
Yuanyang hydraulic lift vacuum emuslifier is a combined mixing equipment with a main vacuum homogenizer tank, a water tank, and an oil tank, which is an integrated equipment with a mixing, dispersing, homogenizing, emulsifying, vacuumizing and powder absorption system that is widely used in cosmetics, food, pharmaceutical, and chemical fields.
Features:
⦁ With a hydraulic lift lid & tilting pot, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
