Automatic Pump Head Feeding and Capping Machine for Sale

Yuanyang automatic pump head feeding and capping machine is a bottle cap sorter and capper for bottles with pump heads, which is often used to close lids of containers such as nail polish, sprayers, and shampoo. The capping machine with a pump head feeder is widely used in food, medicine, chemical, cosmetic, and other industries for mass production and continuous production line .

Features:

⦁ Pneumatic and electric drive;

⦁ Automated fast speed;

⦁ Suitable for various types of caps.

INQUIRY

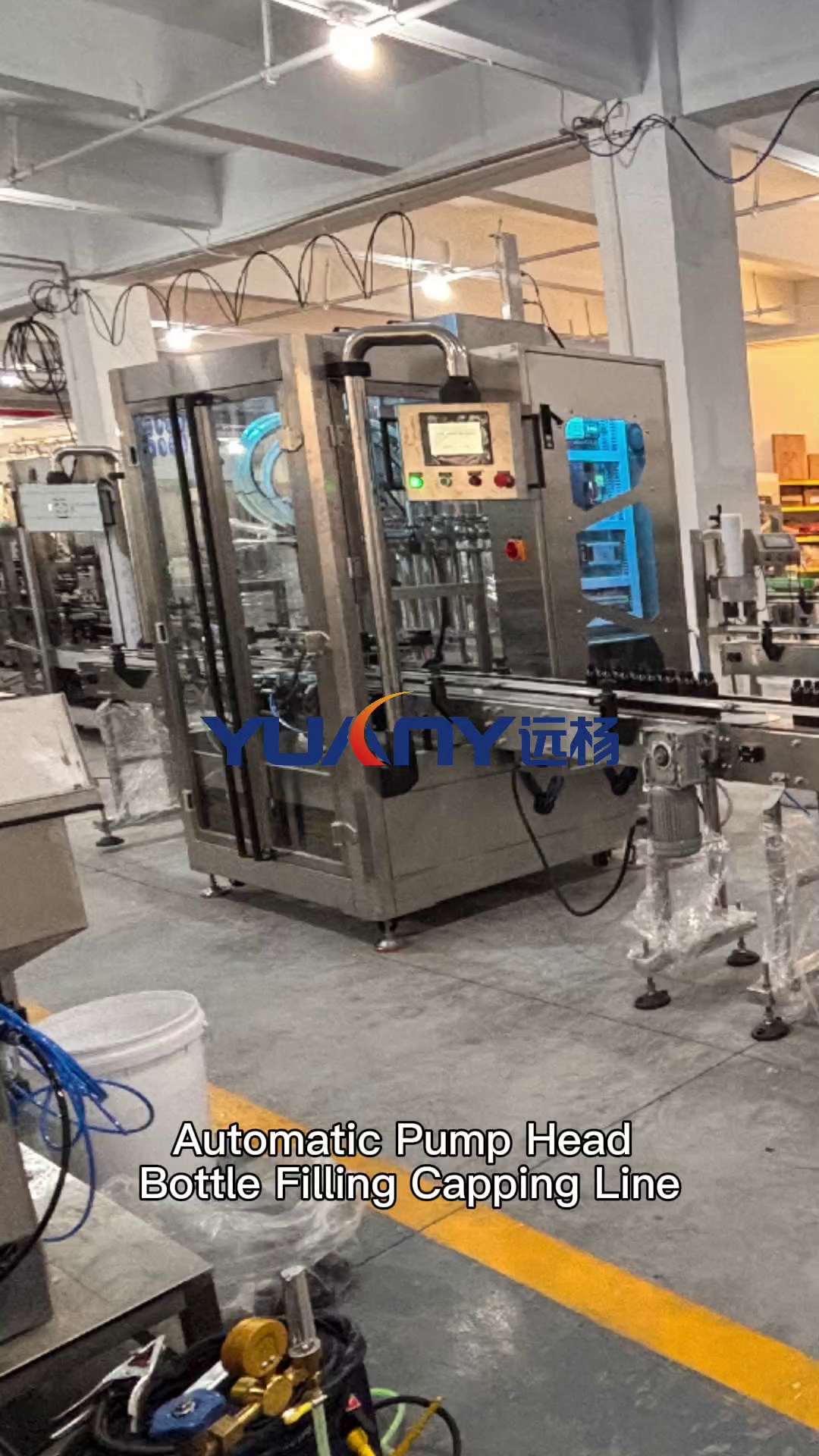

Full Automatic ump head capping machine with cap feeder (2)

nail polish filling cappling machine with pump head feeder

Automatic Pump Head Feeding and Capping Machine: key features

⦁ Reasonable and compact structure: the auto capping machine has stable operation, flexible operation, and convenient specification change and adjustment.

⦁ Flexible operation‌ : the capping machine has the function of automatic start and stop and can automatically start and stop according to need; the operation is flexible.

⦁ Cap without damage: the capping wheels is made of silicone, has no damage to caps, the rolling edge is smooth, and the pass rate is ≥99.5%

⦁ Wide range of application: suitable for a variety of bottle types and lid materials, such as plastic, metal round cap, pump head cap, and duckbill cap.

⦁ Low noise: it adopts frequency conversion speed regulation, the falling cover structure is exquisite, no reverse cover slide, small noise

⦁ Cap torsion adjustable: The use of a magnetic rotating head capping, through magnetic adjustment to achieve capping torsion adjustment.

⦁ Capping machine usually has the advantages of reasonable structure, excellent performance, fast speed, simple operation, easy maintenance, etc.

⦁ The important parts are made of acid-resistant aluminum and stainless steel materials.

⦁ Suitable for the production of different cap sizes.

Automatic Pump Head Feeding and Capping Machine Characteristic

Automatic Pump Head Feeding and Capping Machine
Voltage	AC 220v/50hz	Type	Single head	Suitable caps	Pump head, sprayer, crew caps
Main materials	Aluminum stainless steel	Cap diameter	30-100mm	Air pressure	0.5-0.7
Control panel	PLC touch screen control	Bottle height	38-300mm	Dimensions	L200W70H160 cm
Speed	1000-1500 pcs/hour	Drive method	Pneumatic and electric	Net weight	350kg

Automatic Pump Head Feeding and Capping Machine General Application

Cosmetics industry

A capping machine is a must for cosmetic skin-care products, face cream, toner, body lotion, essence oil, gel, and other bottles and jars to seal them to protect quality and maintain shelf life.

Food industry‌

Capping machines are widely used in beverages, condiments, and other products for capping and sealing, such as juice, ketchup, sesame paste, and peanut butter. Capping operations by machine instead of manual operation improves production efficiency and product quality.

Chemical industry

Capping machine is necessary for laundry detergent, hand sanitizer, body wash, shampoo and other daily chemical products, to ensure the tightness and hygiene

Pharmaceutical industries‌

Capping machines also play an important role in packaging sealed intravenous infusions and other medical products to ensure the sterility and safety of medical products.

Automatic Pump Head Feeding and Capping Machine options

⦁ Automatic 2-heads capping machine: one head or two heads of capping wheels are available, choose according to production speed

⦁ Servo motor capping machine: upgrade control system for easy adjustment

⦁ Automatic capping machine with cap feeder: can automatically complete the cap feeding, bottle/jar positioning, capping, bottle off and other work, suitable for mass production and continuous production line

⦁‌ Straight-line capping machine‌: designed for straight-line, the assembly line is convenient and beautiful

⦁ Rotary capping machine‌: screw the cap by rotation

⦁ High-speed capping machine: suitable for high-speed production needs

⦁ Medium speed capping machine: suitable for medium speed production needs

⦁ Desktop capping machine: suitable for low-speed production needs

FAQs

Automatic Screw Capping Machine

What minimum and maximum caps size can the bottle capper machine be suit for?

The cap diameter of standard 4 wheels capping machine is 20-75mm, but can be slightly customized according real cases.

Is the plastic bottle capping machine electric drive or pneumatic drive?

This bottle cap closing machine is with both electric drive and pneumatic drive. It requires an air compressor.

Do you have a vibratory cap feeding machine for the automatic capping machine?

Yes, we provide vibratory cap feeder or elevator type cap feeder to sort caps. The cap feeder machine has to be customized according cap shape and size, like pump head with straw, metal caps,plastic caps and so on.

Can this bottle capping machine be suitable for pump head bottles ?

The screw capping machine is suitable for various type of screw caps, such as pump head, sprayer, triggers...

Can this capping machine for bottles be connected with filling machine,or labeling machine?

Yes, if client already has an old automatic labeling machine, just tell the conveyor height, we will customize our capping machine height.

Is this lid capping machine suitable for different shapes and sizes of bottles/jars?

Yes, the capping wheels can be adjusted higher or lower for different bottle height. The distance between wheels can be wider or closer for different cap diameter.
