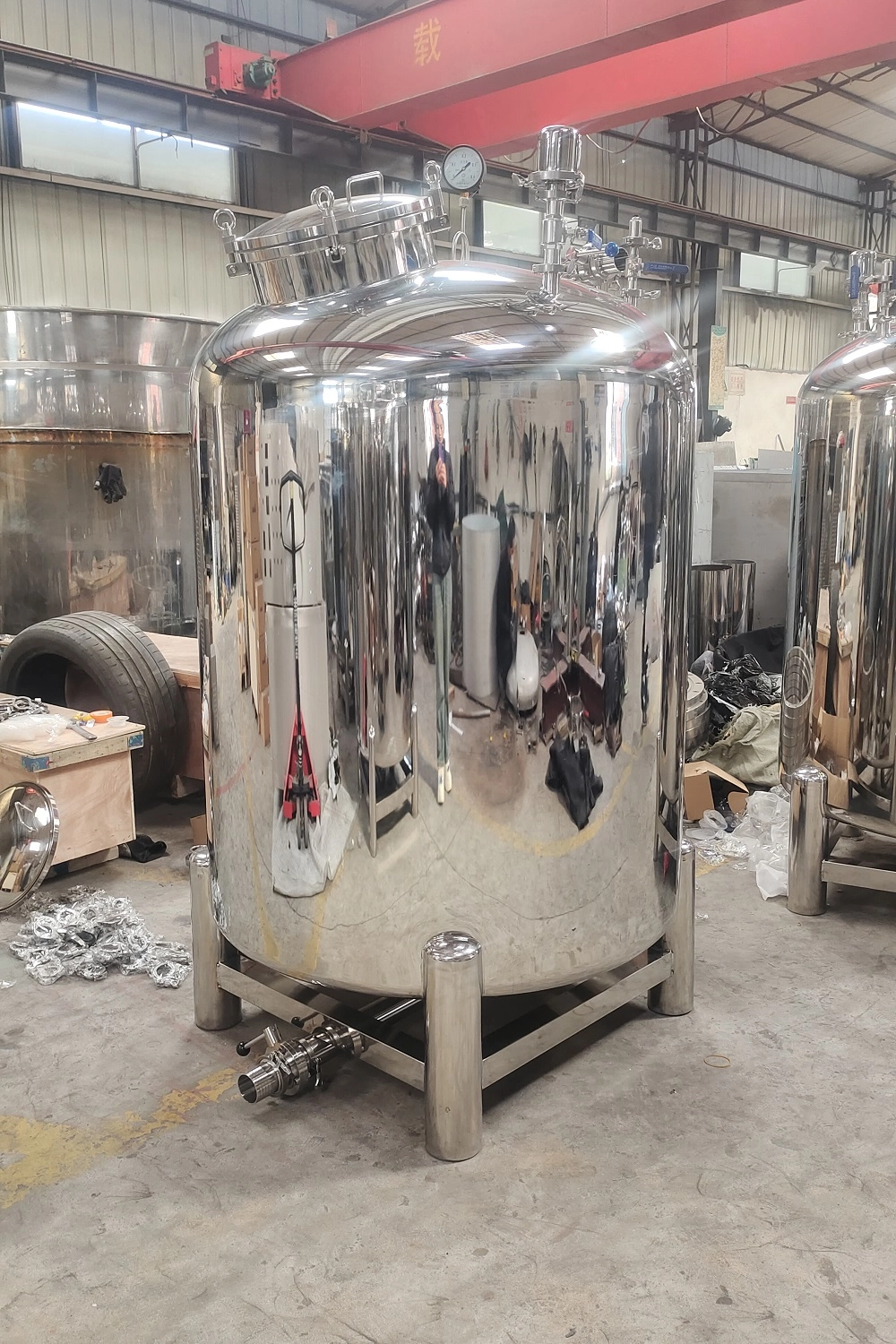

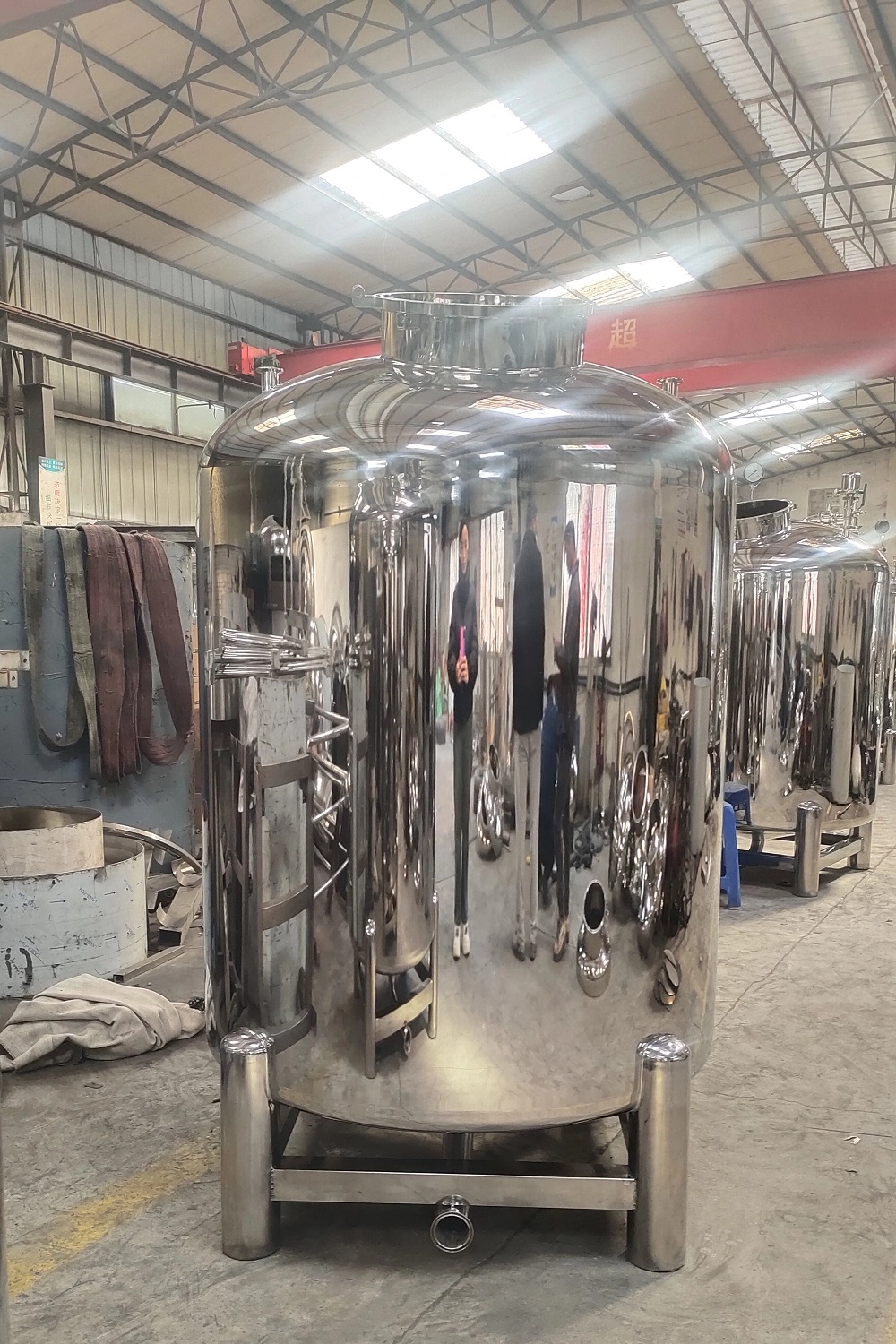

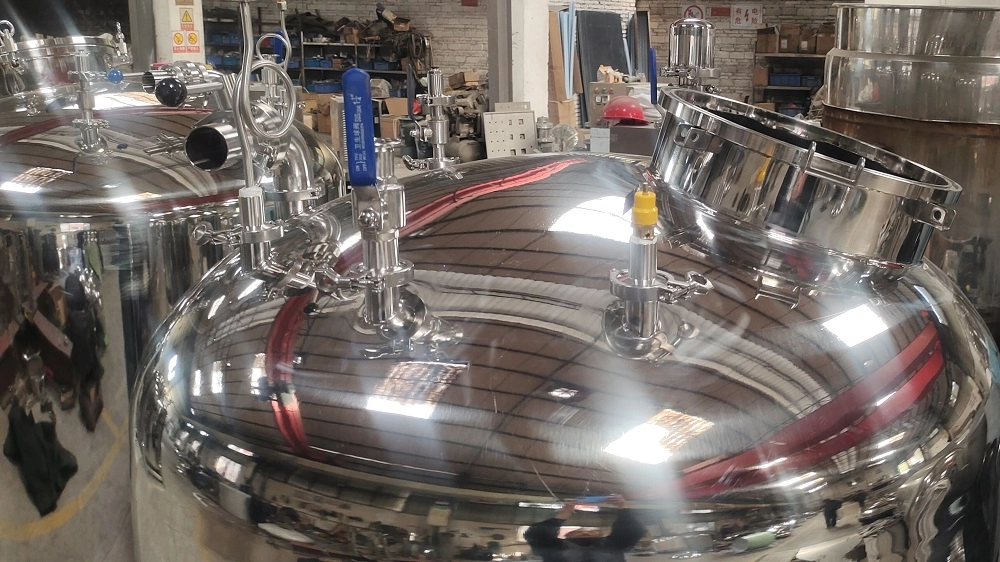

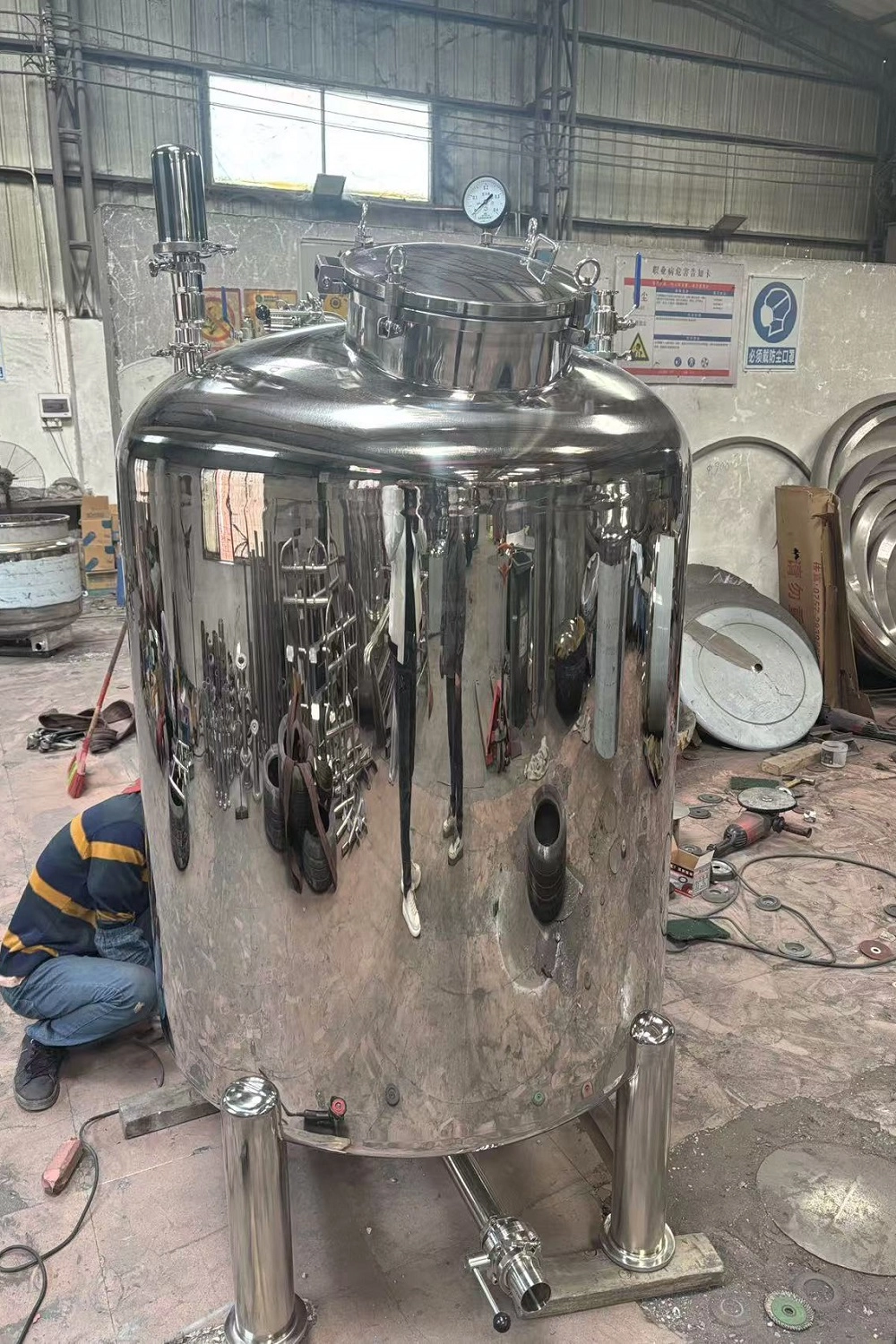

Pressure Tank
The Yuanyang pressure tank is a liquid storage tank made of stainless steel materials, widely used to store food, cosmetics, and other liquid products in food, medicine, chemical, cosmetic and other industries.
Features:
⦁ Capacity from 50 to 5000 L.
⦁ Food-grade materials.
⦁ Suitable for liquids, cream, and paste.
Pressure Tank : key features
Pressurized Tank Characteristic
| Storage Tank | |||||||
| Capacity (L) | Material | Discharge | Discharge method | Discharge outlet (ND mm) |
Cover | Optional function 1 | Optional function 2 |
| 50L | SS304/316L | At bottom/side | Ballbutterfly valve | 50 | Removable lid | Pressurized | Heating/cooling Jacket |
| 100L | SS304/316L | At bottom/side | Ballbutterfly valve | 50 | Half-open lid | Pressurized | Heating/cooling Jacket |
| 200L | SS304/316L | At bottom/side | Ballbutterfly valve | 50 | Sealed/half-open lid | Pressurized | Heating/cooling Jacket |
| 300L | SS304/316L | At bottom/side | Ballbutterfly valve | 50 | Sealed/half-open lid | Pressurized | Heating/cooling Jacket |
| 500L | SS304/316L | At bottom/side | Ballbutterfly valve | 50 | Sealed/half-open lid | Pressurized | Heating/cooling Jacket |
| 1000L | SS304/316L | At bottom/side | Ballbutterfly valve | 50 | Sealed/half-open lid | Pressurized | Heating/cooling Jacket |
| 2000L | SS304/316L | At bottom/side | Ballbutterfly valve | 63 | Sealed lid | Pressurized | Heating/cooling Jacket |
| 3000L | SS304/316L | At bottom/side | Ballbutterfly valve | 63 | Sealed lid | Pressurized | Heating/cooling Jacket |
| 4000L | SS304/316L | At bottom/side | Ballbutterfly valve | 63 | Sealed lid | Pressurized | Heating/cooling Jacket |
| 5000L | SS304/316L | At bottom/side | Ballbutterfly valve | 76 | Sealed lid | Pressurized | Heating/cooling Jacket |
| Note: Capacity is 50-1000L on wheels; bigger than 1000L is standing type. | |||||||
Pressure Storage Tank Application
Storage tank options
FAQs
Portable Storage Tank
What’s the material of the liquid tank?
The tank is made of stainless steel 304 or 316L. We customize upon requirements. Or we recommend according to clients’ products.
What’s the thickness of the stainless steel tank for liquids?
The standard thickness for finished products is 3mm, the water tank thickness is 2mm. But the bigger capacity, the layer will be thicker.
Can you add a lid for the storage tank?
Yes, the lid can be added and customized. For example, with a central hole for overhead mixer, with a material hopper for adding powder or liquids.
Can you add heating function for the storage tank for liquids?
Yes, the tank can be customized with jacket for heating upon requirements.
Can you make the leg longer, I need a higher discharge outlet?
Yes, the tank legs length is customized as well as the discharge outlet height.
Can this tank be used for your lift mixer also?
Yes, the tank can be used for our lift mixer. We normally recommend clients to buy tank together if clients purchased the lift mixer machine, which can ensure the tank is 100% suitable for our mixer. Client can also prepare tank by himself. We will tell the suitable tank size and height.
Leave a message
Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.
Lifting homogenizer mixer for Sale
Yuanyang lifting homogenizer mixer is a movable automatic high-speed mixer widely used for emulsifying, dispersing, and homogenizing cosmetic raw materials, chemical liquids washing production, food processing, and pharmaceutical ingredients.
Features:
⦁ Working head can lift up and go down automatically;
⦁ Speed variable with frequency converter;
⦁ Electric button control;
⦁ Popular capacity: 50-500L
Detergent powder mixer for Sale
Yuanyang detergent powder mixer is also called a ribbon mixer, which is an industrial powder mixer machine applied to mix different kinds of raw powder together, especially used to produce detergent powder.
Feature:
-
⦁ Button control panel;
⦁ Food-grade materials;
⦁ U-shaped tank.
Hydraulic Lift Vacuum Mixer for Sale
Yuanyang hydraulic lift vacuum mixer is a kind of cosmetic mixing equipment, which is the core part of the cosmetic production line.
The hydraulic type is the most popular cosmetic production equipment for making cream, skin-care products, ointment, paste, emulsions, and so on.
Features:
⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.
⦁ With a hydraulic lifting system, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Homogenizing Mixer for Sale
Yuanyang homogenizing mixer is a liquid mixing tank with a high-shear homogenizer. The homogeneous mixing machine is the core part for the liquid soap production line for shampoo, body wash, laundry detergent, dish soap, hand sanitizer, and other thick liquids.
Features:
⦁ Flat top half-open lid, electric control system.
⦁ Suitable for various liquid cleaning products and sauces.
⦁ PTFE wall scrapers stirring at top, high shear homogenizer at bottom.
