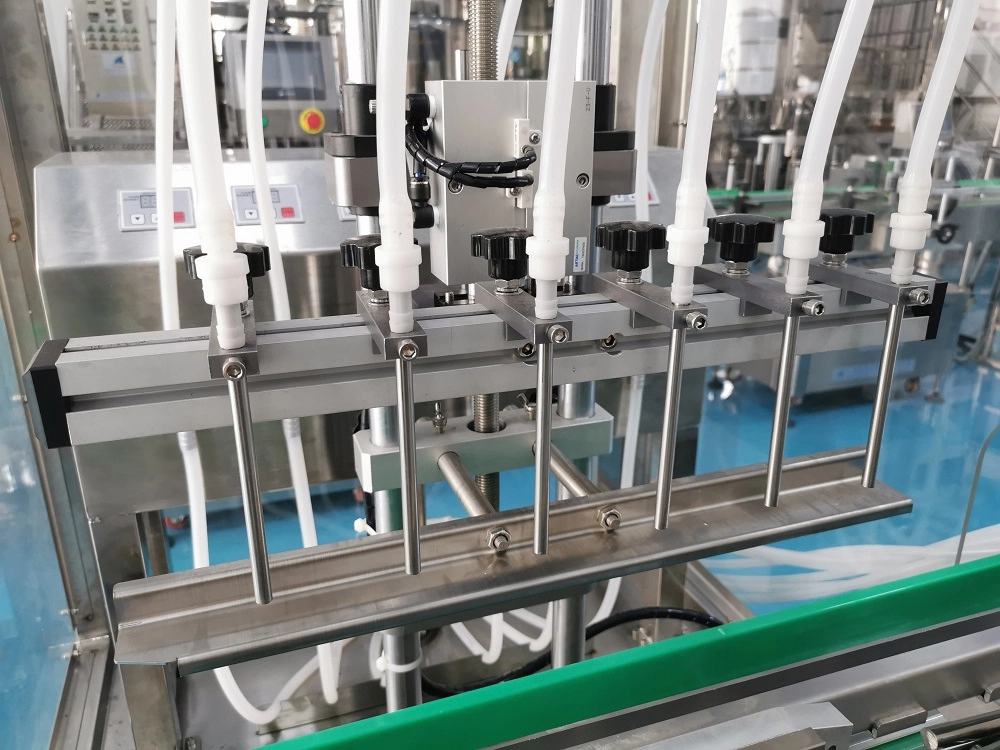

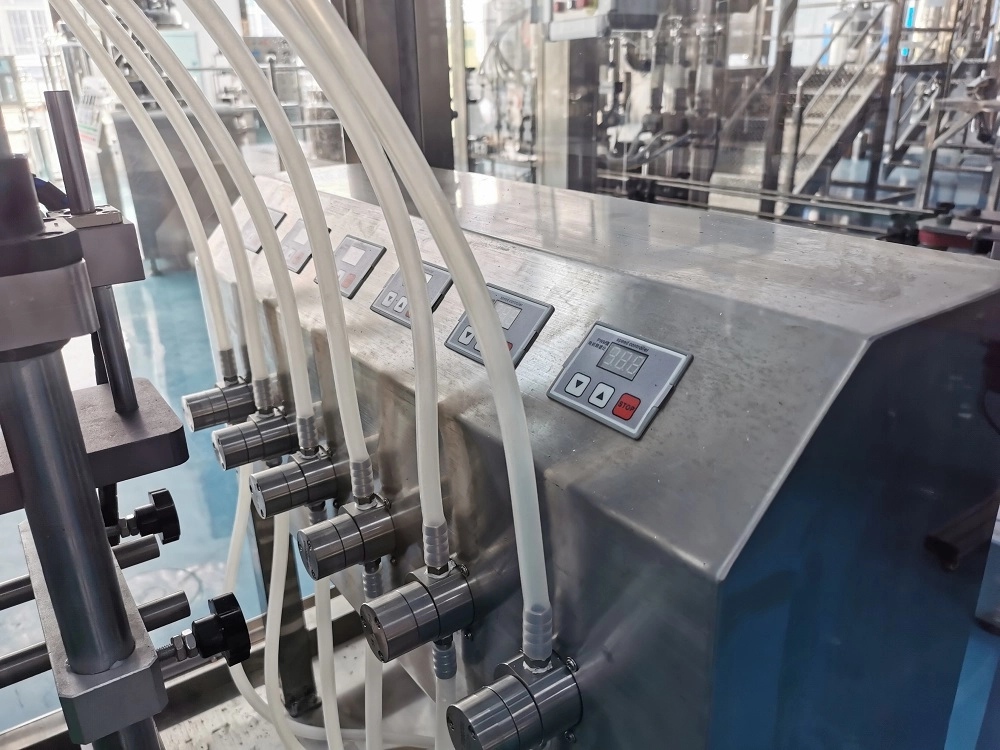

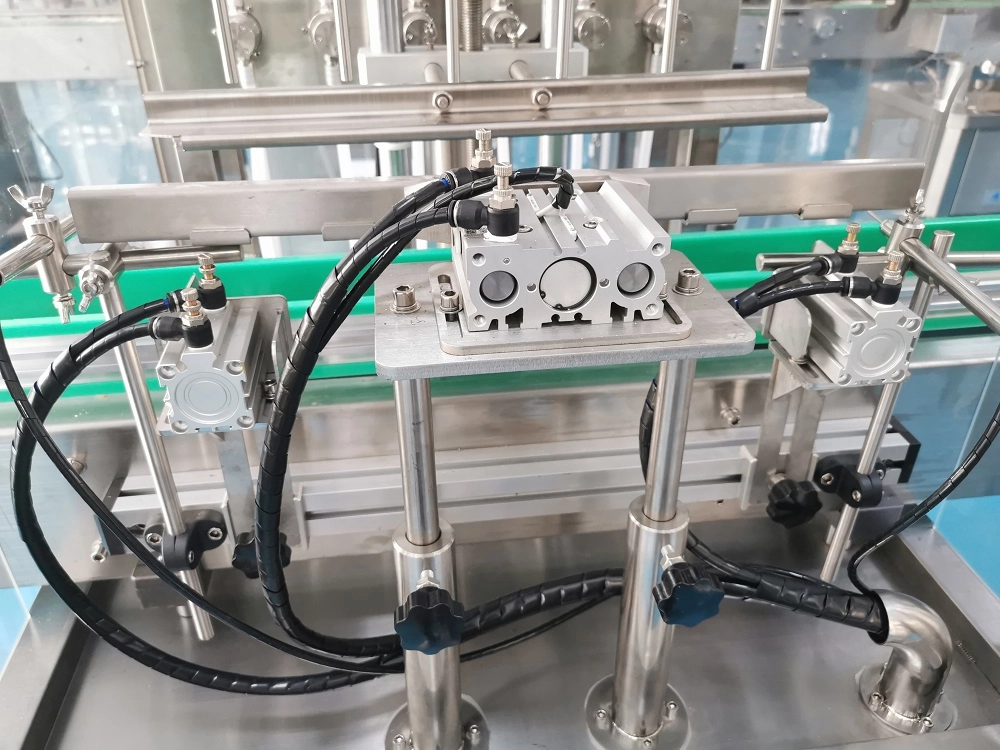

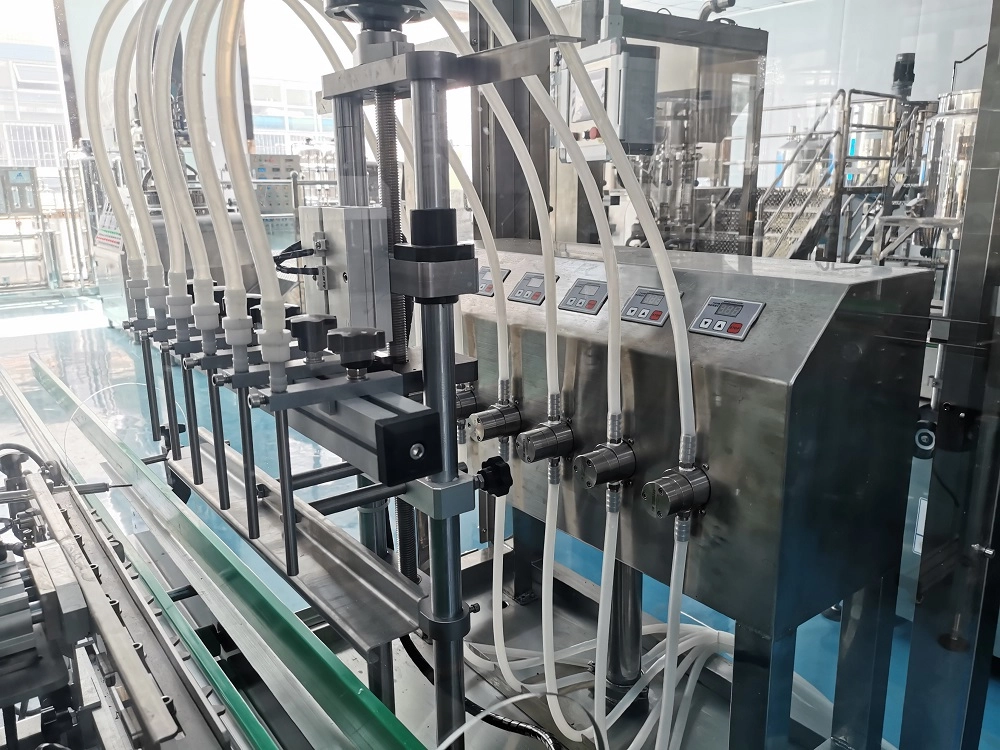

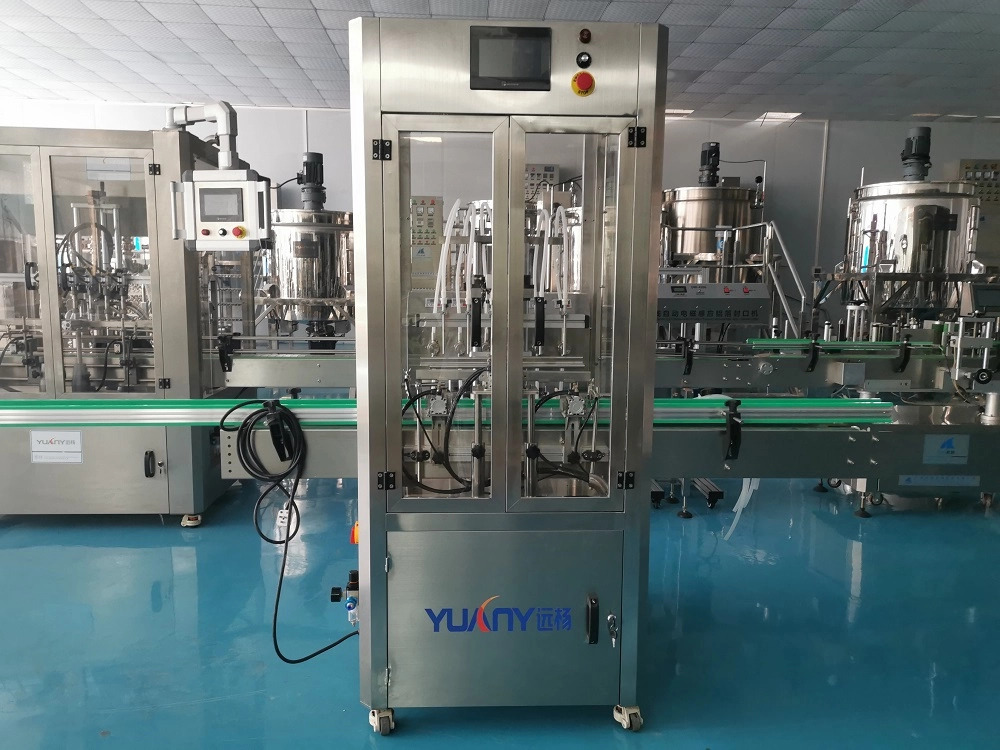

Anti-corrosion Liquid Filling Machine
Yuanyang automatic multi-head magnetic pump anti-corrosive Filling Machine, one of the common water-filling equipment, can achieve fast and accurate quantitative filling. The machine can fill corrosive liquid as well as other liquids like liquor, soy sauce, vinegar, alcohol, mineral water and other edible liquids, which is widely used in food, medicine, chemical, cosmetic and other industries.
Features:
⦁ Automatic liquid suction;
⦁ Food-grade materials;
⦁ Suitable for corrosive liquids, and other water-state products;
Automatic Multi-Head Magnetic Pump Anti-corrosive Filling Machine Working principle
A magnetic pump (also known as a magnetic drive pump) is mainly composed of a pump head, a magnetic drive (magnetic cylinder), a motor, a base, and other parts.
The magnetic drive of the force pump is composed of an external magnetic rotor, an internal magnetic rotor, and a non-magnetic isolation sleeve. When the motor drives the external magnetic rotor through the coupling, the magnetic field can penetrate the air gap and the non-magnetic material isolation sleeve, drive the inner magnetic rotor connected with the impeller to rotate synchronously, and realize the non-contact synchronous transmission of power The dynamic sealing structure with easy leakage is transformed into a static sealing structure with zero leakage. Because the pump shaft and the inner magnetic rotor are completely closed by the pump body and the isolation sleeve, the solution is completely solved the problem of "running, bubbling, dripping and leaking."
The scope of application:
The contact material with the material is made of imported 316L material, which can resist a variety of corrosive, low-viscosity, non-granular liquid, such as: various agents (pharmaceutical oil, medicinal wine, alcohol, eye drops), chemicals (solvents, acetone), oils (cooking oil, essential oil), cosmetics (toner, makeup remover, spray).
Food (can withstand 100 degrees of high temperature, such as milk and soy milk), beverages, condiments, and other non-granular liquids; high- and low-foam liquids (treatments and cleansers).
Automatic Multi-Head Magnetic Pump Anti-corrosive Filling Machine: key features
Automatic Multi-Head Magnetic Pump Anti-corrosive Filling Machine Characteristic
| Automatic Multi-Head Magnetic Pump Anti-corrosive Filling Machine | |||||
| Quantity of filling head | 2-4-6-8-10-12 heads | Suitable for | anti- | Filling methods | Magnetic pump suction |
| Filling nozzle | Anti-drip nozzle | Filling range | 5-6000 ml adjustable | Control method | PLC touch screen |
| Filling speed | 1200-2500 pcs/hour | Main body material | Stainless steel 304 | Pipe material | Food-grade anti-corrosive |
Automatic Multi-Head Magnetic Pump Anti-corrosive Filling Machine General Application
Automatic Multi-Head Magnetic Pump Anti-corrosive Filling Machine options
FAQs
Automatic Piston Filling Machine
Can the filling machine be connected with other machines, such as capping machine, bottle sorting machine?
Yes, this pneumatic filling machine is one of the complete filling line machines, user can tell the conveyor height of his current machine, we shall customize accordingly. If client buy a complete line from us, we will make every machine in a line or according to space.
Can each nozzle be controlled separately?
Yes, each nozzle can be controlled separately.
Can the filling capacity be adjusted on the screen?
Yes, definitely user can slightly adjust the filling capacity according to needs.
What material can the piston filling machine fill?
The piston filler can fill a variety of viscous liquids and pastes, such as laundry detergent, shampoo, hair conditioner, toothpaste, gel water, aloe vera gel, lotion and other washing and care products, honey, loquat paste, mother-herb paste, ketchup, salad dressing and other food.
How to add liquids into the hopper of the fully automatic bottle filling machines?
The automatic liquid filling machine requires a pump to transfer liquids into hopper, and it can stop automatically with a liquid sensor inserted inside the hopper.
