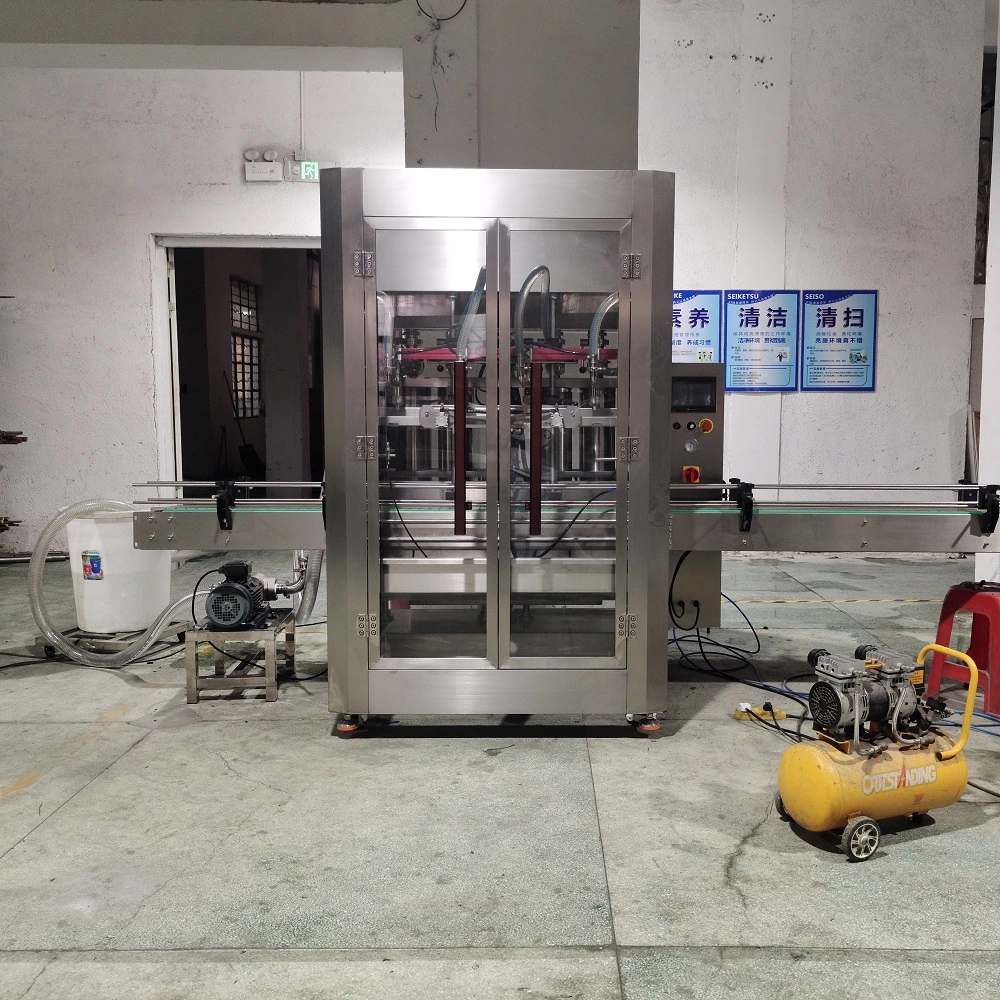

Automatic 4 Heads Detergent Filling Machine for Sale
Yuanyang automatic piston filling machine is one of the common automatic filling equipment and can achieve fast and accurate quantitative filling. The machine can fill cream, lotion, paste, detergent, mayonnaise, viscous products, and various liquids, which are widely used in food, medicine, chemical, cosmetic, and other industries.
Features:
⦁ Adopts piston system for filling;
⦁ Equipped with liquid sensor in material hopper
⦁ Food-grade materials;
⦁ Suitable for liquids, cream, paste;
Automatic 4 Heads Detergent Filling Machine Working principle
The piston filler adopts air pressure to drive the piston, fill the material into the piston, and push it into the container for filling. Specifically, the piston-filling machine has a piston and a pipe, and the pipe has a discharge port and a feed port. When the piston is pushed, the air in the pipe is compressed, and the material is pushed into the pipe and then out of the discharge port, finally into the filling container.
When the piston is pulled back, the feed port automatically opens, allowing the material to be sucked into the pipe.
The filling amount of the automatic piston filling machine is obtained by calculating the displacement of the piston. The piston moves downward to inject material into the filling chamber of the filling head. When the piston moves to the set displacement distance, the air pressure will automatically shut off, and the piston will stop moving. At this time, the filling amount has been determined.
Automatic 4 Heads Detergent Filling Machine: key features
Automatic 4 Heads Detergent Filling Machine Characteristic
| Automatic 4-Heads Detergent Filling Machine | |||||
| Quantity of filling head | 4 heads | Suitable for | Thick liquids, viscous liquids | Filing system | Piston |
| Filling nozzle | Anti-drip nozzle | Hopper | 150L with liquid sensor | Optional function | Heating |
| Filling speed | 1700-3000 pcs/hour | Contact material | Stainless steel 304 | Optional filling way | Submersible filling |
| Control method | PLC touch screen | Conveyor speed | Adjustable | Optional filling heads | 2-4-6-8-10-12 heads |
| Tool box spare parts: sealing rings, screwdrivers, filling nozzles and related vulnerable parts | |||||
| Filling range: 5-60ml, 10-120ml, 20-200ml, 30-300ml, 50-500ml, 100-1000ml, 200-2000ml, 300-3000ml, 500-5000ml | |||||
Automatic 4 Heads Detergent Filling Machine General Application
Automatic 4 Heads Detergent Filling Machine options
FAQs
Automatic Piston Filling Machine
Can each nozzle be controlled separately?
Yes, each nozzle can be controlled separately.
Can the filling machine be connected with other machines, such as capping machine, bottle sorting machine?
Yes, this pneumatic filling machine is one of the complete filling line machines, user can tell the conveyor height of his current machine, we shall customize accordingly. If client buy a complete line from us, we will make every machine in a line or according to space.
What material can the piston filling machine fill?
The piston filler can fill a variety of viscous liquids and pastes, such as laundry detergent, shampoo, hair conditioner, toothpaste, gel water, aloe vera gel, lotion and other washing and care products, honey, loquat paste, mother-herb paste, ketchup, salad dressing and other food.
How to add liquids into the hopper of the fully automatic bottle filling machines?

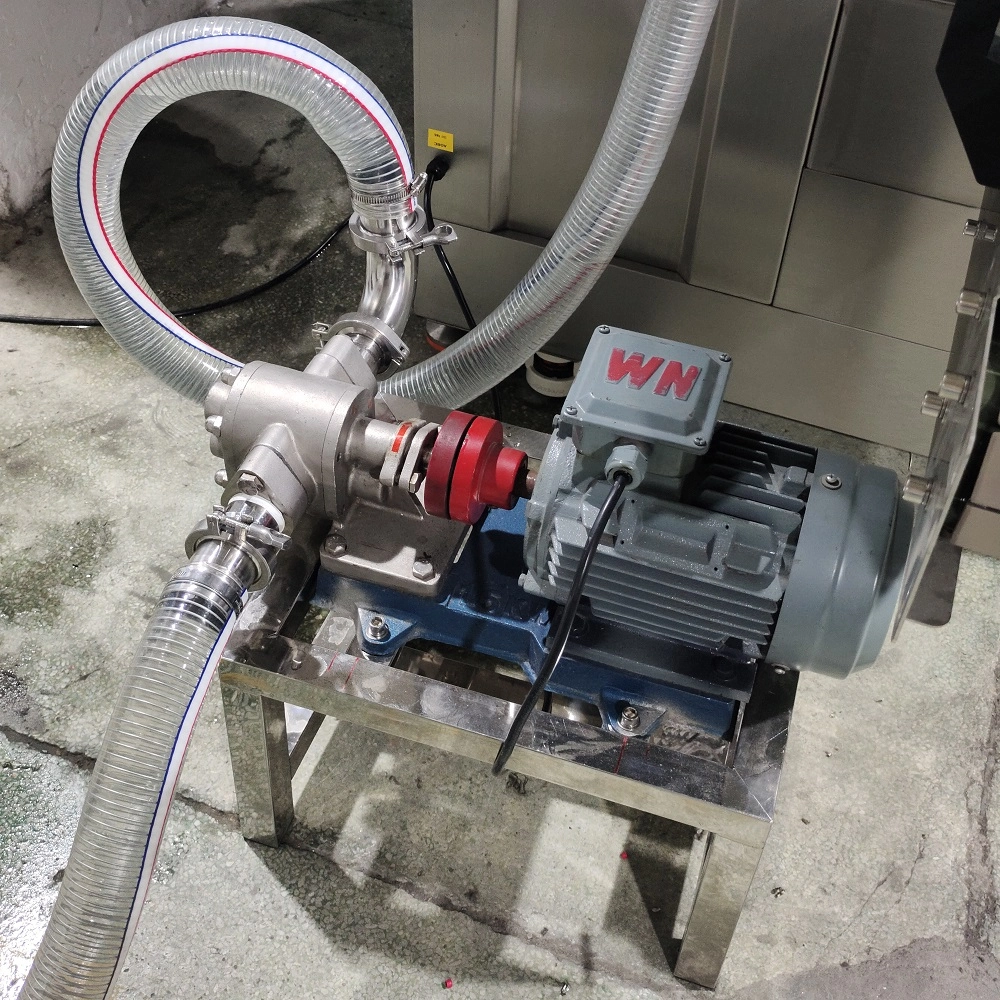

The automatic liquid filling machine requires a pump to transfer liquids into hopper, and it can stop automatically with a liquid sensor inserted inside the hopper.
Can the filling capacity be adjusted on the screen?
Yes, definitely user can slightly adjust the filling capacity according to needs.
