Cosmetic Making Machine

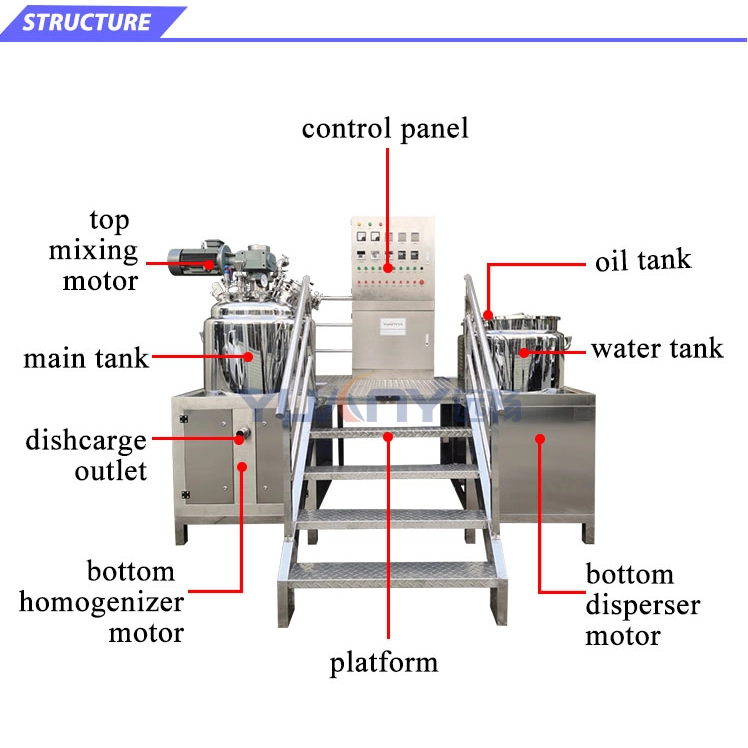

Yuanyang cosmetic making machine is a combined mixing equipment with a main vacuum homogenizer tank, a water tank, and an oil tank, which is an integrated equipment with a mixing, dispersing, homogenizing, emulsifying, vacuumizing and powder absorption system that is widely used in cosmetics, food, pharmaceutical, and chemical fields.

Features:

⦁ With a fixed lid, vacuum system, and electric control system.

⦁ Suitable for products of 10,000~50,000 cps viscosity.

⦁ Perfect particle size of 2 microns and evenly distributed.

INQUIRY

Vacuum Cosmetic Mixer with Water and Oil Tank: key features

⦁ The emulsifier machine adopts an imported frequency converter for speed adjustment, which can meet different technological demands.

⦁ The vacuum mixers adopt German technology with an imported double-end mechanical seal effect.

⦁ The maximum emulsifying rotation speed of the emulsifying equipment can reach 4200 rpm, and the highest shearing fineness can reach 0.2-5 μm.

⦁ The vacuum defoaming can make the materials meet the requirement of being aseptic.

⦁ The emulsifying mixer lid can adopt a lifting system, making it easy to clean. The emulsifying pot can adopt tilt discharge.

⦁ The emulsifying machine is designed with 3 layers and double jackets for heating, cooling, and insulation purposes.

⦁ Each function of the vacuum mixer can be controlled separately by an electric button control panel (PLC control is optional).

Vacuum Cosmetic Mixer with Water and Oil Tank Characteristic

Vacuum Cosmetic Mixer with Water and Oil Tank
Working capacity (L)	Material	Agitator power (KW)	Speed (rpm)	Homogenizer power (KW)	Homogenizer speed (rpm)	Water pot （L）	Oil pot （L）	Main pot system
50L	SS304/316L	1.1	0-65	3	0-3000	40	25	Hydraulic lift/Fixed lid
100L	SS304/316L	1.5	0-65	3	0-3000	60	50	Hydraulic lift/Fixed lid
200L	SS304/316L	2.2	0-65	4	0-3000	150	100	Hydraulic lift/Fixed lid
300L	SS304/316L	3	0-65	7.5	0-3000	250	120	Hydraulic lift/Fixed lid
500L	SS304/316L	4	0-65	11	0-3000	350	250	Fixed lid
1000L	SS304/316L	5.5	0-65	15	0-3000	600	500	Fixed lid
2000L	SS304/316L	7.5	0-65	18.5	0-3000	1500	1000	Fixed lid
3000L	SS304/316L	11	0-65	22	0-3000	2000	1000	Fixed lid
5000L	SS304/316L	15	0-65	37	0-3000	3000	2000	Fixed lid
Key functions include vacuuming, scrapers mixing, homogenizing, heating. Two ways of homogenizer installation: on top or at bottom Two ways of heating: electric heating and steam heating; steam heating requires a steam generator Water pot and oil pot are optional; choose according to actual needs. Other optional functions: circulation system, load cell system, water flow meter system

Vacuum Cosmetic Mixer with Water and Oil Tank General Application

Cosmetics industry

Skincare cream, shaving cream, soap, gel, wax, mascara, toothpaste, sunscreen, facial cleanser, and other products.

Food industry‌

Jam, butter, sauce, cheese, mayonnaise, wasabi, nutrient solution, baby food, and other products.

Pharmaceutical industry

Emulsion, ointment, oral liquid, oral syrup, dental composite, injection, and other products.

Chemical industry

Shampoo, detergent, latex, saponification products, adhesives, polyester, synthetic fiber, shoe cream, lubricants, and other chemicals.

Other industries‌

Coating ink, nanomaterials, the petrochemical industry, printing and dyeing auxiliaries, the paper industry, pesticides and fertilizers, plastics and rubber, power electronics, and other fields.

Vacuum Cosmetic Mixer with Water and Oil Tank options

⦁ The emulsifying mixer has upper homogenization, lower homogenization, and internal and external circulation homogenization.

⦁ An emulsifying pot without a water pot and oil pot is optional.

⦁ A fixed lid with bolts or a lifting lid is optional.

⦁ Steam heating or electric heating can be chosen.

⦁ A cleaning ball and valve can be added.

⦁ A weighing system is available upon request.

⦁ Water flow metering is available upon requirement.

⦁ Pneumatic valve is customized upon requirement.

⦁ A combined platform with other mixer tanks can be designed.

⦁ Discharge pump is optional.

⦁ Polished layer or matte layer.

⦁ Explosion-proof motor is available.

⦁ Vacuum system is optional.

FAQs

Vacuum Emulsifier

What’s the brand of motor for this vacuum emulsifying mixer?

We have different brand of motor for clients to choose. The standard motor brand is Beide, optional choice is Siemens and ABB.

What capacity do you provide for vacuum emulsifying mixer machine?

We can supply from 50 Liters to 5000 Liters for mixing tanks，but we recommend maximum 1000L for vacuum emulsifier homogenizer，whose the package sizes is just ok for regular 40” HQ container.

What type of homogenizer do you use for this vacuum homogenizer emulsifier?

There are two types of homogenizer, one is with regular standard mechanical sealing type, another is water cooling type. Clients can choose the preferred type according to needs.

Does this vacuum cosmetic emulsifying mixer machine have double jackets for cooling and insulation?

Yes, the vacuum emulsifying homgogenizer mixer is with three layers, thus forming two jackets. The inner jacket is for heating and cooling purpose. The outer jacket is for insulation and protection purpose.

What’s frequency converter (VFD) used for this cosmetic emulsifier?

We have 2 brand of converter for clients to choose. The standard converter is Delta, the optional choice is Mitsubishi.

What the difference between hydraulic lifting vacuum mixer and fixed lid vacuum mixer?

The main different between the two types of equipment is on the main emulsifier pot. The main pot of hydraulic lifting emulsifier can tilt down to empty materials. The hydraulic system helps to lift the main pot cover up, then the main pot can tilt down. But the fixed lid type has no this function.

Leave a message

Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.

Vacuum Emulsifying Mixer for Sale

Yuanyang vacuum emulsifying mixer is a kind of emulsifier machine, the most popular cosmetics production equipment for making cream, skin-care products, ointment, paste, and emulsions.

Features:

⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.

⦁ With a hydraulic lifting system, vacuum system, and electric control system.

⦁ Suitable for products of 10,000~50,000 cps viscosity.

⦁ Perfect particle size of 2 microns and evenly distributed.

Vacuum Emulsifying Mixer for Sale

Hydraulic Lift Vacuum Mixer for Sale

Yuanyang hydraulic lift vacuum mixer is a kind of cosmetic mixing equipment, which is the core part of the cosmetic production line.

The hydraulic type is the most popular cosmetic production equipment for making cream, skin-care products, ointment, paste, emulsions, and so on.

Features:

⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.

⦁ With a hydraulic lifting system, vacuum system, and electric control system.

⦁ Suitable for products of 10,000~50,000 cps viscosity.

⦁ Perfect particle size of 2 microns and evenly distributed.

Hydraulic Lift Vacuum Mixer for Sale
