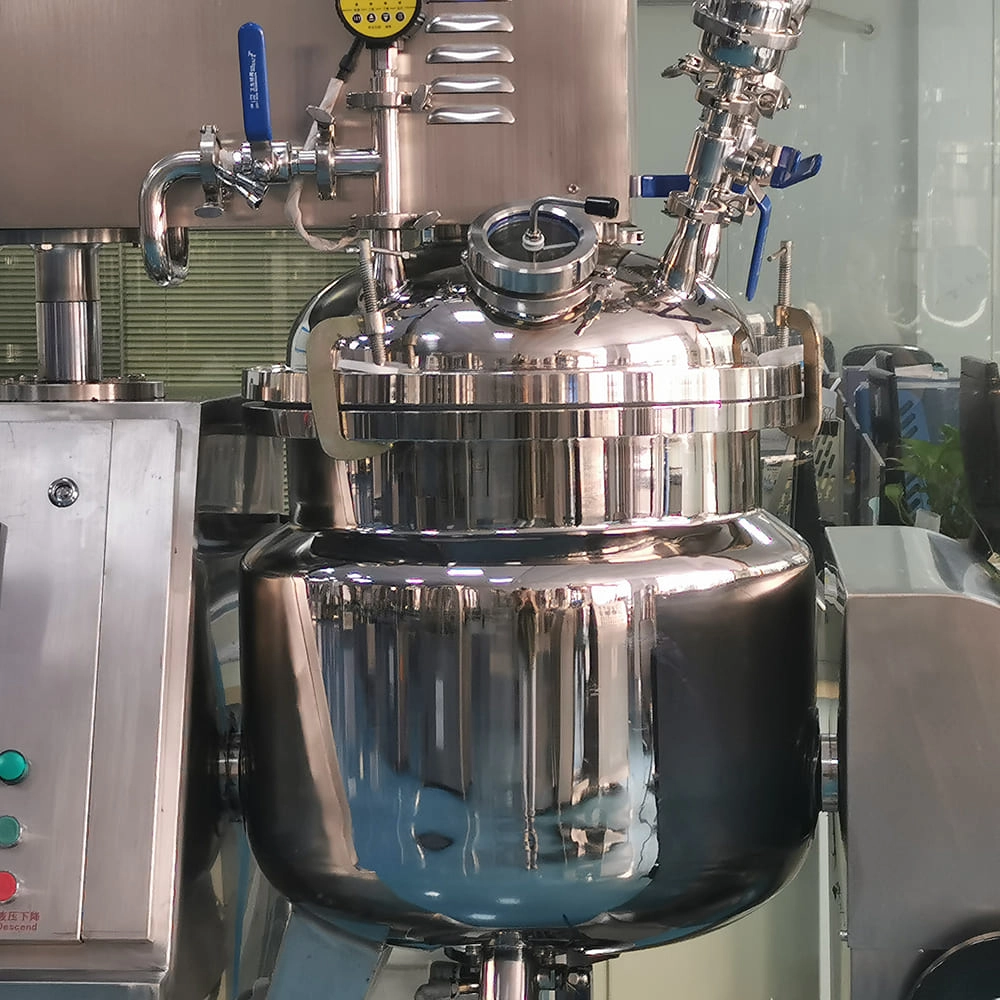

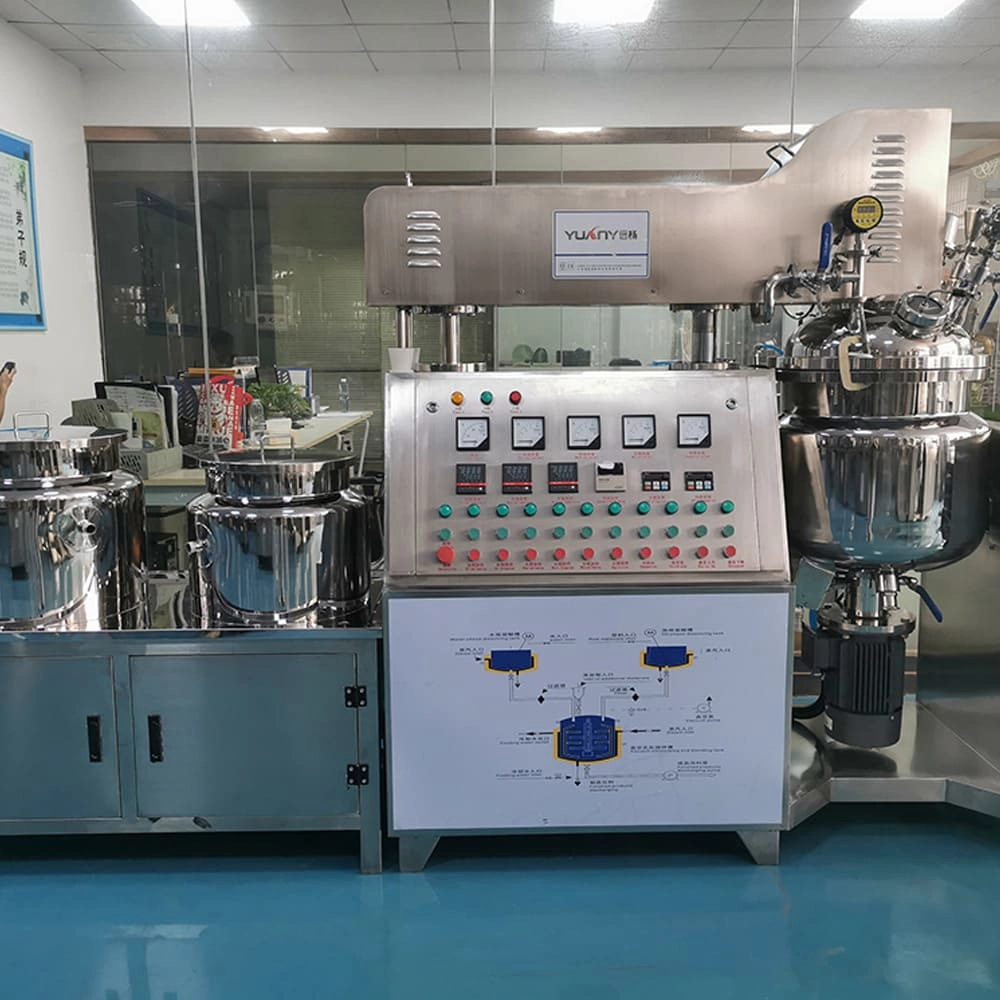

Vacuum Emulsifying Mixer for Sale
Yuanyang vacuum emulsifying mixer is a kind of emulsifier machine, the most popular cosmetics production equipment for making cream, skin-care products, ointment, paste, and emulsions.
Features:
⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.
⦁ With a hydraulic lifting system, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Vacuum Emulsifying Mixer Introduction

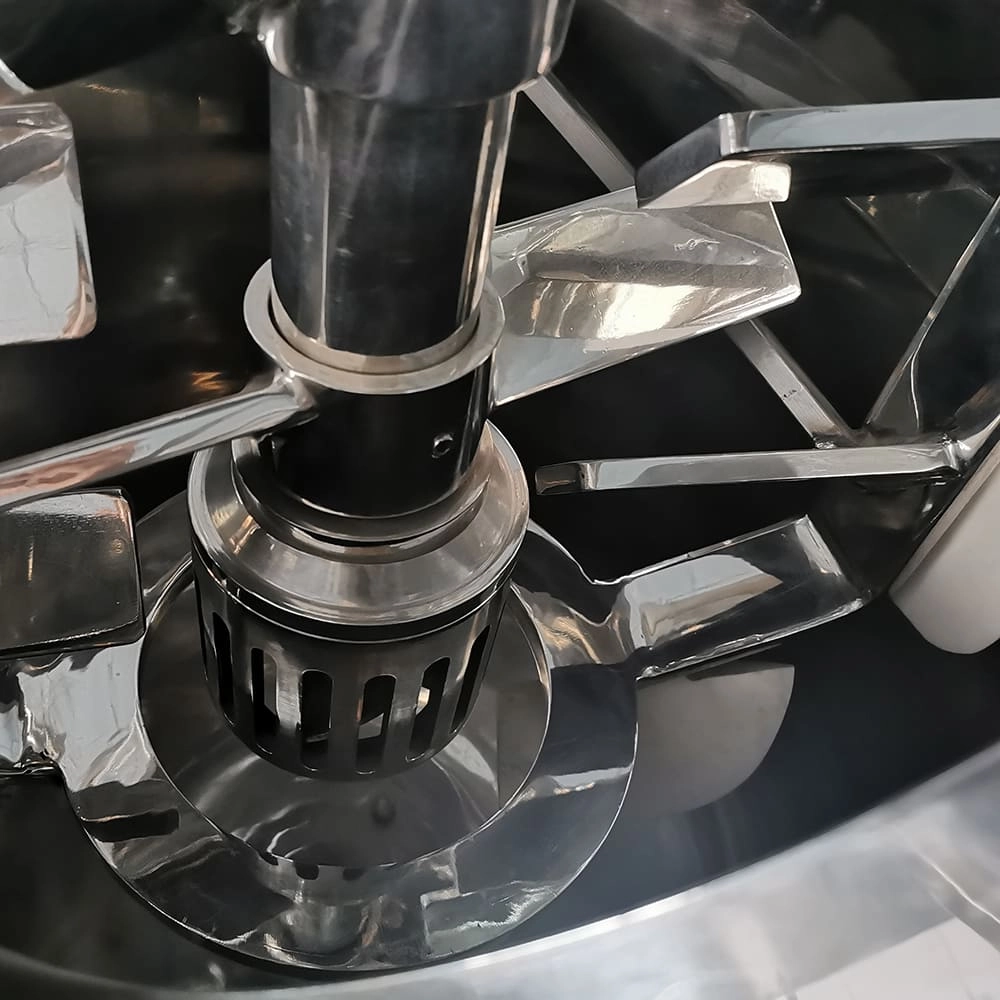

The emulsifier machine is often called a cosmetic mixer, or vacuum emulsifying mixer machine. When the materials are under the vacuum condition, it makes use of the high shear homogenizer to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between the stator and rotor by the strong energy of motion produced by the machine effect.
By the operation of shearing, centrifugal extruding, impacting, breaking, and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
This series of emulsion mixer is mainly applied in such industries as cosmetic skin care products, food industry, pharmaceutical industry, nanometre materials, electronics, fine chemical industry, etc.
The emulsifying effect of the vacuum emulsifying mixer is more prominent for materials of high viscosity and high solid content.
Vacuum Emulsifying Mixer: key features
Vacuum Emulsifying Mixer Characteristic
| Vacuum Emulsifying Mixer | ||||||||
| Working capacity (L) | Material | Agitator power (KW) |
Speed (rpm) |
Homogenizer power (KW) |
Homogenizer speed (rpm) |
Water pot （L） |
Oil pot （L） |
Main pot system |
| 50L | SS304/316L | 1.1 | 0-65 | 3 | 0-3000 | 40 | 25 | Hydraulic lift |
| 100L | SS304/316L | 1.5 | 0-65 | 3 | 0-3000 | 60 | 50 | Hydraulic lift |
| 200L | SS304/316L | 2.2 | 0-65 | 4 | 0-3000 | 150 | 100 | Hydraulic lift |
| 300L | SS304/316L | 3 | 0-65 | 7.5 | 0-3000 | 250 | 120 | Hydraulic lift |
| 500L | SS304/316L | 4 | 0-65 | 11 | 0-3000 | 350 | 250 | Fixed lid |
| 1000L | SS304/316L | 5.5 | 0-65 | 15 | 0-3000 | 600 | 500 | Fixed lid |
| 2000L | SS304/316L | 7.5 | 0-65 | 18.5 | 0-3000 | 1500 | 1000 | Fixed lid |
| 3000L | SS304/316L | 11 | 0-65 | 22 | 0-3000 | 2000 | 1000 | Fixed lid |
| 5000L | SS304/316L | 15 | 0-65 | 37 | 0-3000 | 3000 | 2000 | Fixed lid |
| Key functions include vacuuming, scrapers mixing, homogenizing, heating. Two ways of homogenizer installation: on top or at bottom Two ways of heating: electric heating and steam heating; steam heating requires a steam generator Water pot and oil pot are optional; choose according to actual needs. Other optional functions: circulation system, load cell system, water flow meter system |
||||||||
Vacuum Emulsifying Mixer General Application
Vacuum Emulsifying Mixer options
FAQs
Vacuum Emulsifying Mixer
Can the lid of this cosmetic cream mixing tank be open and lift up?
Yes, the cover of the sterile cosmetic mixing tank can be open and lift up by hydraulic system. What’s more, the main mixing tank can also tilt down to discharge
Leave a message
Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.
Cosmetic Making Machine
Yuanyang cosmetic making machine is a combined mixing equipment with a main vacuum homogenizer tank, a water tank, and an oil tank, which is an integrated equipment with a mixing, dispersing, homogenizing, emulsifying, vacuumizing and powder absorption system that is widely used in cosmetics, food, pharmaceutical, and chemical fields.
Features:
⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Small Business Vacuum Homogenizer
Yuanyang vacuum homogenizer is a mixing tank with a top scrapers mixing & bottom homogenizer and vacuum system. The vacuum mixer is widely used in cosmetics, food, pharmaceutical, and chemical fields.
Feature:
-
⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Vacuum Homogenizer for Sale
Yuanyang vacuum homogenizer is a homogenizer mixer with a vacuum system. The homogenizer is an integrated piece of equipment with mixing, dispersing, homogenizing, emulsifying, and powder absorption systems, which is widely used in the cosmetics, food, pharmaceutical, and chemical fields.
Feature:
-
⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Hydraulic Lift Vacuum Mixer for Sale
Yuanyang hydraulic lift vacuum mixer is a kind of cosmetic mixing equipment, which is the core part of the cosmetic production line.
The hydraulic type is the most popular cosmetic production equipment for making cream, skin-care products, ointment, paste, emulsions, and so on.
Features:
⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.
⦁ With a hydraulic lifting system, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
