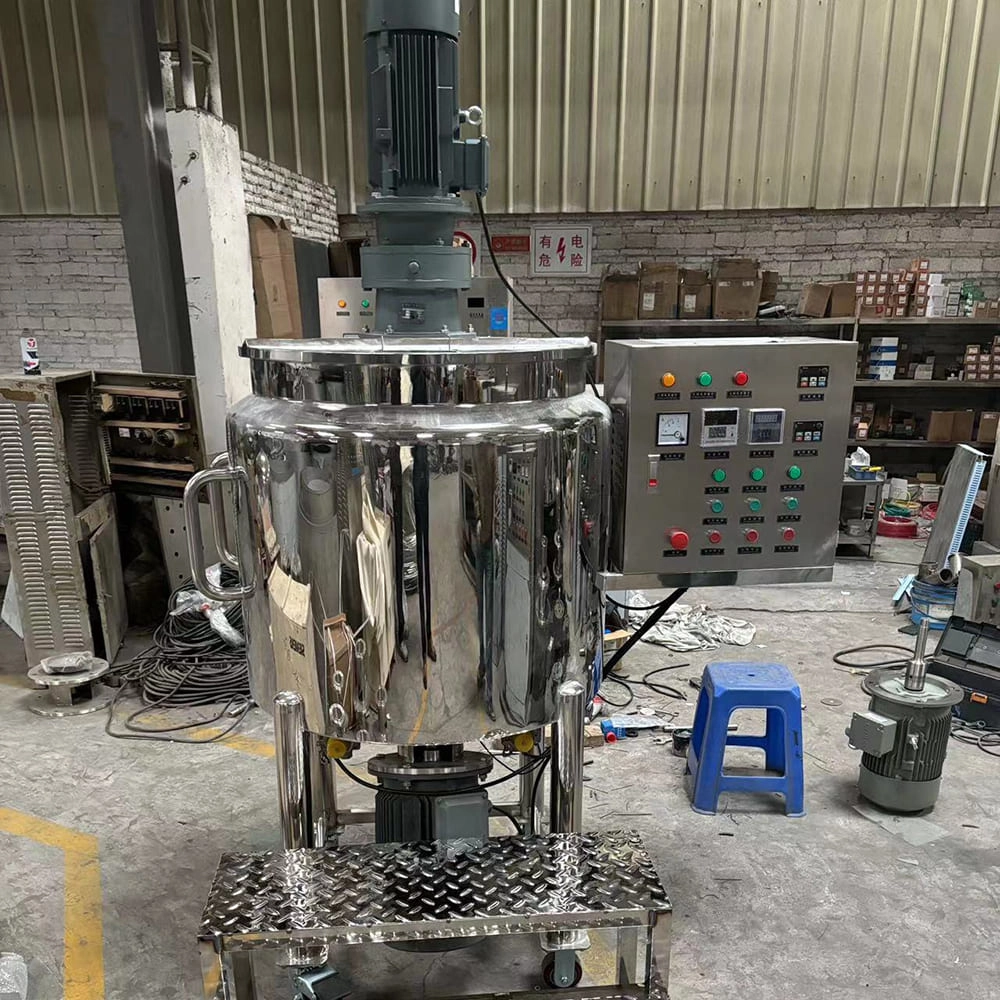

Portable Homogenizer Mixing Tank for Sale

Yuanyang portable homogenizer mixing tank is common liquid soap mixer, specially designed for mass production of liquid washing products, such as shampoo, body wash, laundry detergent, dish soap, hand sanitizer and so on

Feature:

⦁ Flat top half-open lid, electric control system.

⦁ Suitable for various liquid cleaning products and sauces.

⦁ PTFE wall scrapers stirring at top, high shear homogenizer at bottom.

INQUIRY

Portable Homogenizer Mixing Tank: key features

⦁ The liquid soap mixing tank adopts an imported frequency converter for speed adjustment, which can meet different technological demands.

⦁ The liquid homogenizer mixer adopts German technology with an imported double-end mechanical seal effect.

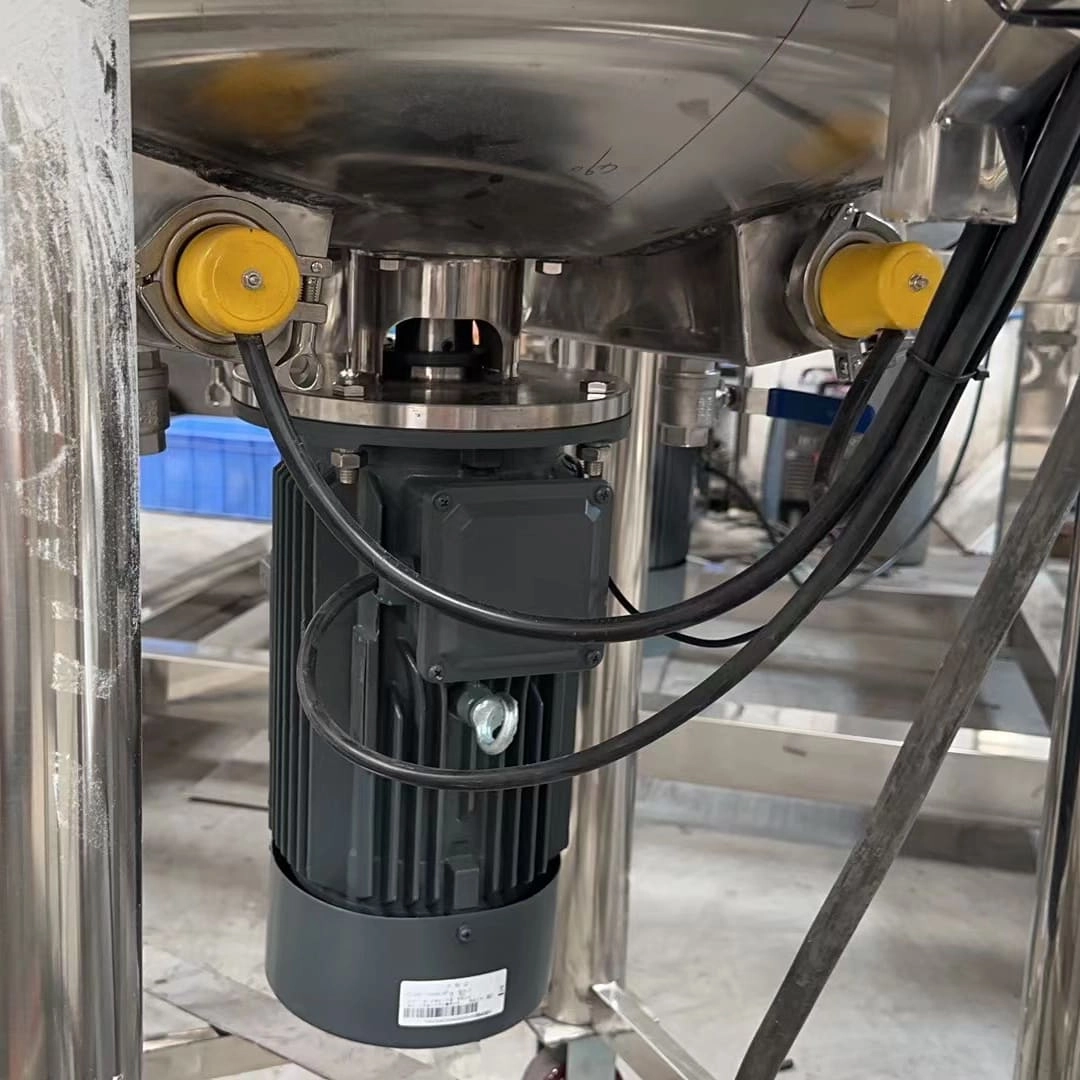

⦁ The standard homogenizer speed is 3000 rpm. The maximum emulsifying rotation speed of the homogeneous mixer can reach 6000 rpm, and the highest shearing fineness can reach 0.2-5 μm.

⦁ The tank body is a single-layer stainless steel 316 material. Can be designed with 3 layers, double jackets for heating,cooling,insulation purpose.

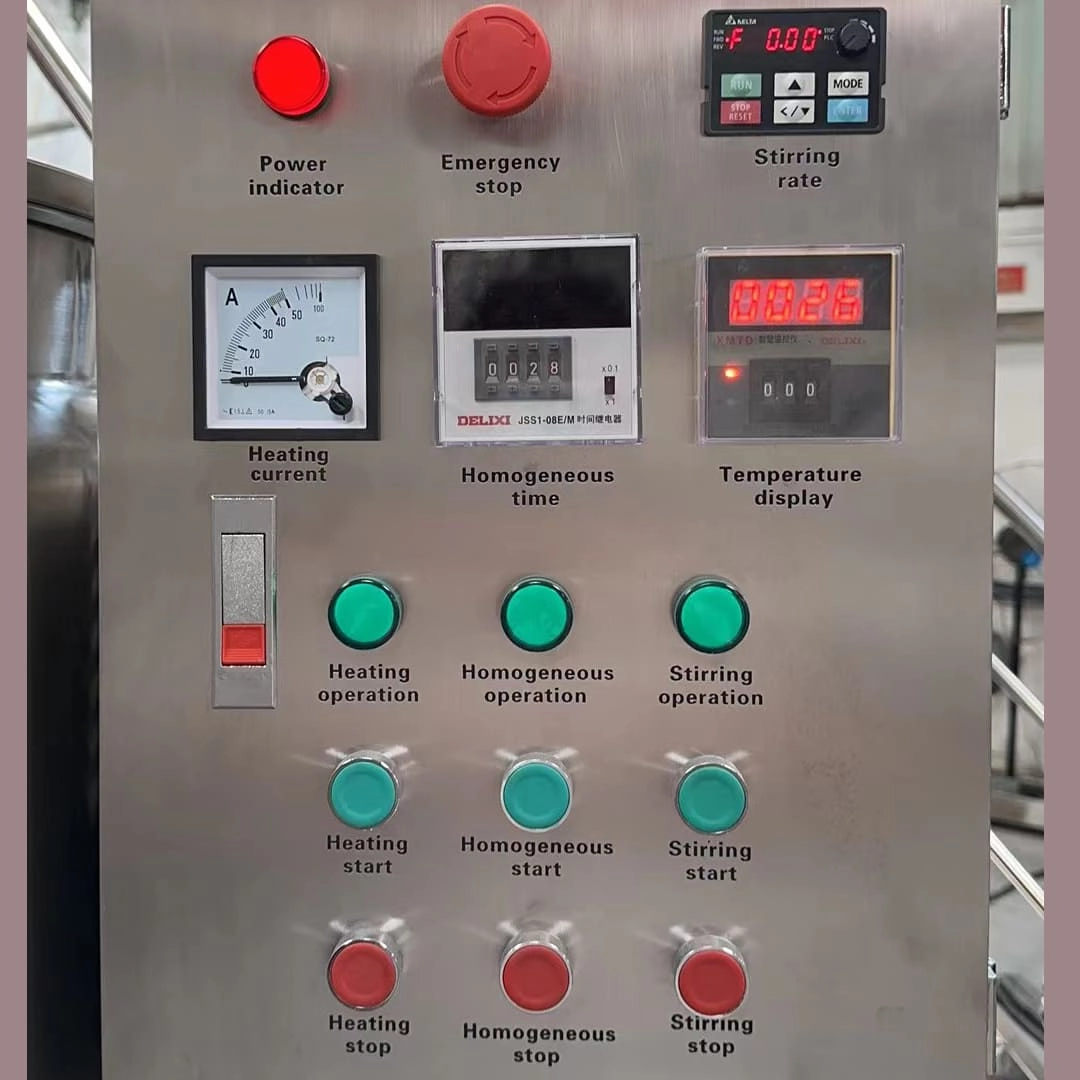

⦁ Each function of the soap mixer can be controlled separately by an electric button control panel (PLC control is optional).

Portable Homogenizer Mixing Tank Characteristic

Portable Homogenizer Mixing Tank
Working capacity (L)	Material	Agitator power (KW)	Speed (rpm)	Homogenizer power (KW)	Homogenizer speed (rpm)	Electric heating (KW)	Steam heating
50L	SS304/316L	0.75	0-65	1.5	0-3000	6	Steam
100L	SS304/316L	1.1	0-65	2.2	0-3000	12	Steam
200L	SS304/316L	1.5	0-65	3	0-3000	18	Steam
300L	SS304/316L	2.2	0-65	4	0-3000	18	Steam
500L	SS304/316L	3	0-65	5.5	0-3000	27	Steam
1000L	SS304/316L	4	0-65	11	0-3000	36	Steam
2000L	SS304/316L	5.5	0-65	15	0-3000	72	Steam
3000L	SS304/316L	7.5	0-65	18.5	0-3000	/	Steam
5000L	SS304/316L	11	0-65	22	0-3000	/	Steam
Key function: scrapers mixing (basic); homogenizing (key); double jackets (optional) for heating/cooling and insulation Two ways of homogenizer installation: on top or at bottom Two ways of heating: electric heating and steam heating; steam heating requires a steam generator Capacity 50-500L on wheels; 500L or bigger capacity with platform Other optional functionss: circulation system, vacuum system, load cell system, water flow meter system

Portable Homogenizer Mixing Tank General Application

Cosmetics industry

Skincare cream, shaving cream, soap, gel, wax, mascara, toothpaste, sunscreen, facial cleanser, and other products.

Food industry‌

Jam, butter, sauce, cheese, mayonnaise, wasabi, nutrient solution, baby food, and other products.

Pharmaceutical industry

Emulsion, ointment, oral liquid, oral syrup, dental composite, injection, and other products.

Chemical industry

Shampoo, detergent, latex, saponification products, adhesives, polyester, synthetic fiber, shoe cream, lubricants, and other chemicals.

Other industries‌

Coating ink, nanomaterials, the petrochemical industry, printing and dyeing auxiliaries, the paper industry, pesticides and fertilizers, plastics and rubber, power electronics, and other fields.

Portable Homogenizer Mixing Tank options

⦁ The homogenizer can be installed at the bottom or at the top.

⦁ Sealed lid is optional.

⦁ Steam heating or electric heating can be chosen.

⦁ Single layer, double layer, three layers upon requirement.

⦁ A weighing system is available upon request.

⦁ Water flow metering is available upon requirement.

⦁ A combined platform with other mixer tanks can be designed.

⦁ Polished layer or matte layer.

⦁ Explosion-proof motor is available.

⦁ Vacuum system is optional.

⦁ Circulation system is optional.

FAQs

Liquid Soap Mixer

Can you also provide the related production machines?

Yes, we supply the complete set of liquid soap production machines, such as filling machine,capping machine,labeling machine,sealing machine, and coding machine.

Can you provide liquid soap formula and train service?

Yes, we can provide different formulas, and teach client how to adjust the formula flexibly.

How many layers is the soap mixer tank?

The standard tanks has 1 layer for non-heating type,two layers for only cooling purpose,3 layers for cooling and heating purpose.

Which do you recommend, steam heating or electric heating?

To save cost, electric heating is recommended, especially for small capacity soap mixing tank; Steam heating requires a steam generator, if client has steam generator, steam heating is recommended.

Can you customize soap mixer machine accordingly if the ceiling height is limited?

Yes, the tank size will be customized, the top motor can be horizontal to make sure the complete set machine can fit client’s factory.

Leave a message

Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.

Please enter your name not exceed 100 characters

Name

The email format is not correct or exceed 100 characters, Please reenter!

Email

Please enter a valid phone number!

Phone

Please enter your field_568 not exceed 150 characters

Company Name

Please enter your content not exceed 500 characters

Content

Lifting homogenizer mixer for Sale

Yuanyang lifting homogenizer mixer is a movable automatic high-speed mixer widely used for emulsifying, dispersing, and homogenizing cosmetic raw materials, chemical liquids washing production, food processing, and pharmaceutical ingredients.

‌

Features:

⦁ Working head can lift up and go down automatically;

⦁ Speed variable with frequency converter;

⦁ Electric button control;

⦁ Popular capacity: 50-500L

Lifting homogenizer mixer for Sale

Detergent powder mixer for Sale

Yuanyang detergent powder mixer is also called a ribbon mixer, which is an industrial powder mixer machine applied to mix different kinds of raw powder together, especially used to produce detergent powder.

Feature:

⦁ Button control panel;

⦁ Food-grade materials;

⦁ U-shaped tank.

Detergent powder mixer for Sale

Hydraulic Lift Vacuum Mixer for Sale

Yuanyang hydraulic lift vacuum mixer is a kind of cosmetic mixing equipment, which is the core part of the cosmetic production line.

The hydraulic type is the most popular cosmetic production equipment for making cream, skin-care products, ointment, paste, emulsions, and so on.

Features:

⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.

⦁ With a hydraulic lifting system, vacuum system, and electric control system.

⦁ Suitable for products of 10,000~50,000 cps viscosity.

⦁ Perfect particle size of 2 microns and evenly distributed.

Hydraulic Lift Vacuum Mixer for Sale

Homogenizing Mixer for Sale

Yuanyang homogenizing mixer is a liquid mixing tank with a high-shear homogenizer. The homogeneous mixing machine is the core part for the liquid soap production line for shampoo, body wash, laundry detergent, dish soap, hand sanitizer, and other thick liquids.

Features:

⦁ Flat top half-open lid, electric control system.

⦁ Suitable for various liquid cleaning products and sauces.

⦁ PTFE wall scrapers stirring at top, high shear homogenizer at bottom.

Homogenizing Mixer for Sale
