Vacuum Cosmetic Mixer with Water and Oil Tank for Sale

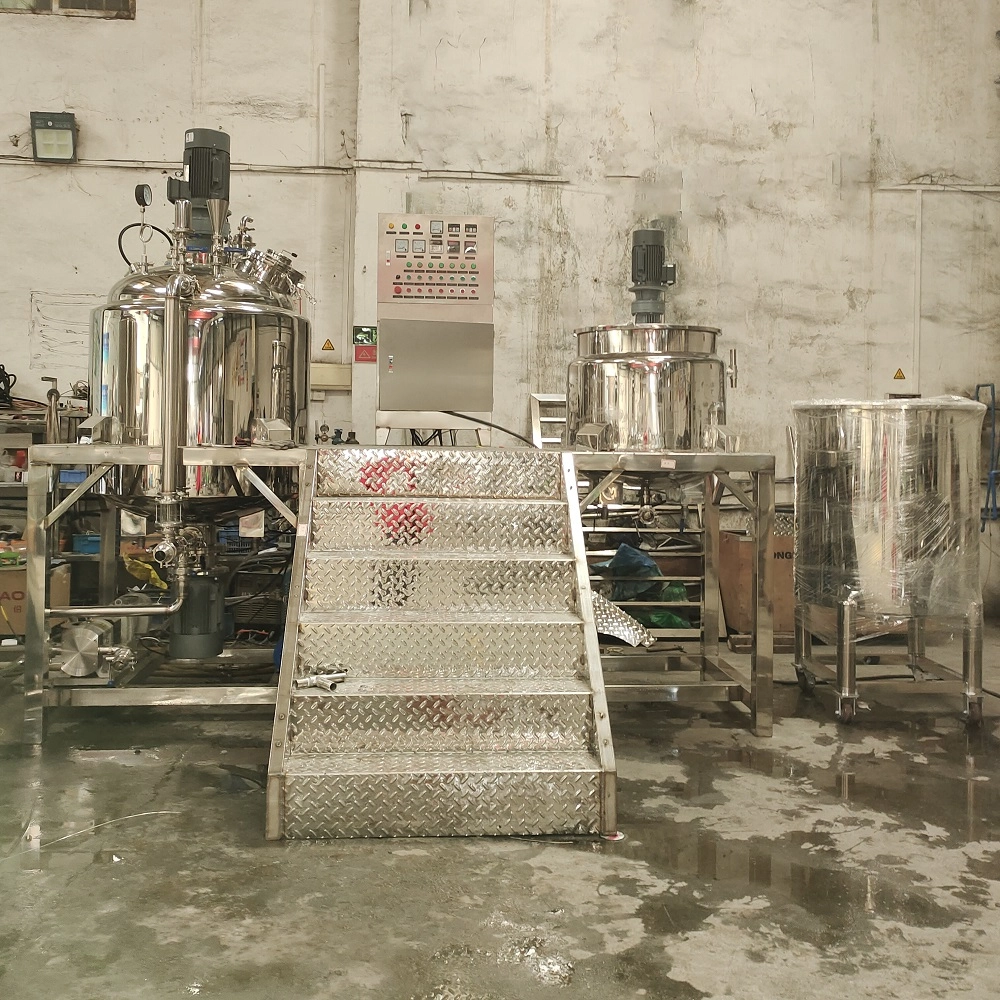

Yuanyang vacuum cosmetic mixer is a combined mixing equipment with a main vacuum homogenizer tank, water tank, and oil tank, which is an integrated equipment with a mixing, dispersing, homogenizing, emulsifying, and powder absorption system that is widely used in cosmetics, food, pharmaceutical, and chemical fields.
Features:

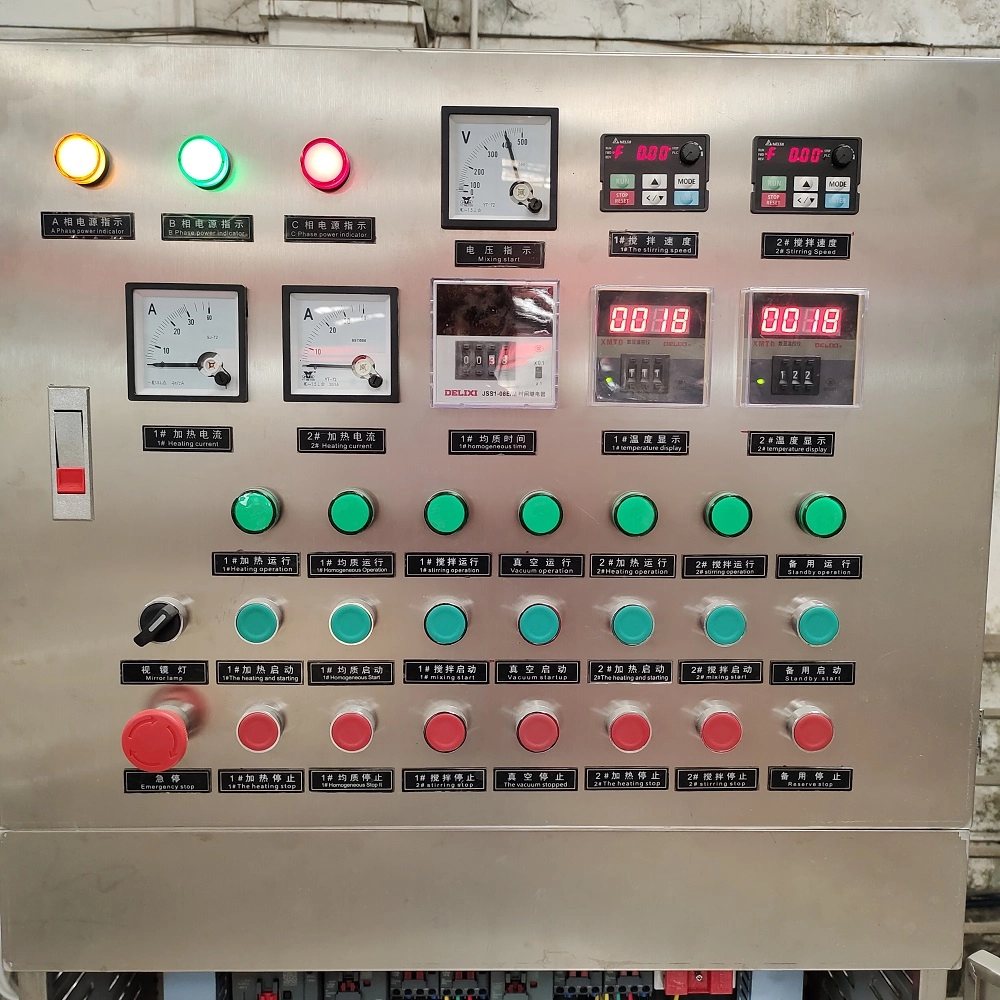

⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Vacuum Cosmetic Mixer with Water and Oil Tank: key features
Vacuum Cosmetic Mixer with Water and Oil Tank Characteristic
| Vacuum Cosmetic Mixer with Water and Oil Tank | ||||||||
| Working capacity (L) | Material | Agitator power (KW) |
Speed (rpm) |
Homogenizer power (KW) |
Homogenizer speed (rpm) |
Water pot （L） |
Oil pot （L） |
Main pot system |
| 50L | SS304/316L | 1.1 | 0-65 | 3 | 0-3000 | 40 | 25 | Hydraulic lift |
| 100L | SS304/316L | 1.5 | 0-65 | 3 | 0-3000 | 60 | 50 | Hydraulic lift |
| 200L | SS304/316L | 2.2 | 0-65 | 4 | 0-3000 | 150 | 100 | Hydraulic lift |
| 300L | SS304/316L | 3 | 0-65 | 7.5 | 0-3000 | 250 | 120 | Hydraulic lift |
| 500L | SS304/316L | 4 | 0-65 | 11 | 0-3000 | 350 | 250 | Fixed lid |
| 1000L | SS304/316L | 5.5 | 0-65 | 15 | 0-3000 | 600 | 500 | Fixed lid |
| 2000L | SS304/316L | 7.5 | 0-65 | 18.5 | 0-3000 | 1500 | 1000 | Fixed lid |
| 3000L | SS304/316L | 11 | 0-65 | 22 | 0-3000 | 2000 | 1000 | Fixed lid |
| 5000L | SS304/316L | 15 | 0-65 | 37 | 0-3000 | 3000 | 2000 | Fixed lid |
| Key functions include vacuuming, scrapers mixing, homogenizing, heating. Two ways of homogenizer installation: on top or at bottom Two ways of heating: electric heating and steam heating; steam heating requires a steam generator Water pot and oil pot are optional; choose according to actual needs. Other optional functions: circulation system, load cell system, water flow meter system |
||||||||
Vacuum Cosmetic Mixer with Water and Oil Tank General Application
Vacuum Cosmetic Mixer with Water and Oil Tank options
FAQs
Vacuum Emulsifier
What capacity do you provide for vacuum emulsifying mixer machine?
We can supply from 50 Liters to 5000 Liters for mixing tanks，but we recommend maximum 1000L for vacuum emulsifier homogenizer，whose the package sizes is just ok for regular 40” HQ container.
Does this vacuum cosmetic emulsifying mixer machine have double jackets for cooling and insulation?
Yes, the vacuum emulsifying homgogenizer mixer is with three layers, thus forming two jackets. The inner jacket is for heating and cooling purpose. The outer jacket is for insulation and protection purpose.
What’s the brand of motor for this vacuum emulsifying mixer?
We have different brand of motor for clients to choose. The standard motor brand is Beide, optional choice is Siemens and ABB.
What type of homogenizer do you use for this vacuum homogenizer emulsifier?
There are two types of homogenizer, one is with regular standard mechanical sealing type, another is water cooling type. Clients can choose the preferred type according to needs.
What the difference between hydraulic lifting vacuum mixer and fixed lid vacuum mixer?
The main different between the two types of equipment is on the main emulsifier pot. The main pot of hydraulic lifting emulsifier can tilt down to empty materials. The hydraulic system helps to lift the main pot cover up, then the main pot can tilt down. But the fixed lid type has no this function.
What’s frequency converter (VFD) used for this cosmetic emulsifier?
We have 2 brand of converter for clients to choose. The standard converter is Delta, the optional choice is Mitsubishi.
Leave a message
Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.
Lifting homogenizer mixer for Sale
Yuanyang lifting homogenizer mixer is a movable automatic high-speed mixer widely used for emulsifying, dispersing, and homogenizing cosmetic raw materials, chemical liquids washing production, food processing, and pharmaceutical ingredients.
Features:
⦁ Working head can lift up and go down automatically;
⦁ Speed variable with frequency converter;
⦁ Electric button control;
⦁ Popular capacity: 50-500L
Detergent powder mixer for Sale
Yuanyang detergent powder mixer is also called a ribbon mixer, which is an industrial powder mixer machine applied to mix different kinds of raw powder together, especially used to produce detergent powder.
Feature:
-
⦁ Button control panel;
⦁ Food-grade materials;
⦁ U-shaped tank.
Hydraulic Lift Vacuum Mixer for Sale
Yuanyang hydraulic lift vacuum mixer is a kind of cosmetic mixing equipment, which is the core part of the cosmetic production line.
The hydraulic type is the most popular cosmetic production equipment for making cream, skin-care products, ointment, paste, emulsions, and so on.
Features:
⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.
⦁ With a hydraulic lifting system, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Homogenizing Mixer for Sale
Yuanyang homogenizing mixer is a liquid mixing tank with a high-shear homogenizer. The homogeneous mixing machine is the core part for the liquid soap production line for shampoo, body wash, laundry detergent, dish soap, hand sanitizer, and other thick liquids.
Features:
⦁ Flat top half-open lid, electric control system.
⦁ Suitable for various liquid cleaning products and sauces.
⦁ PTFE wall scrapers stirring at top, high shear homogenizer at bottom.
