Cosmetic Making Machine for Sale

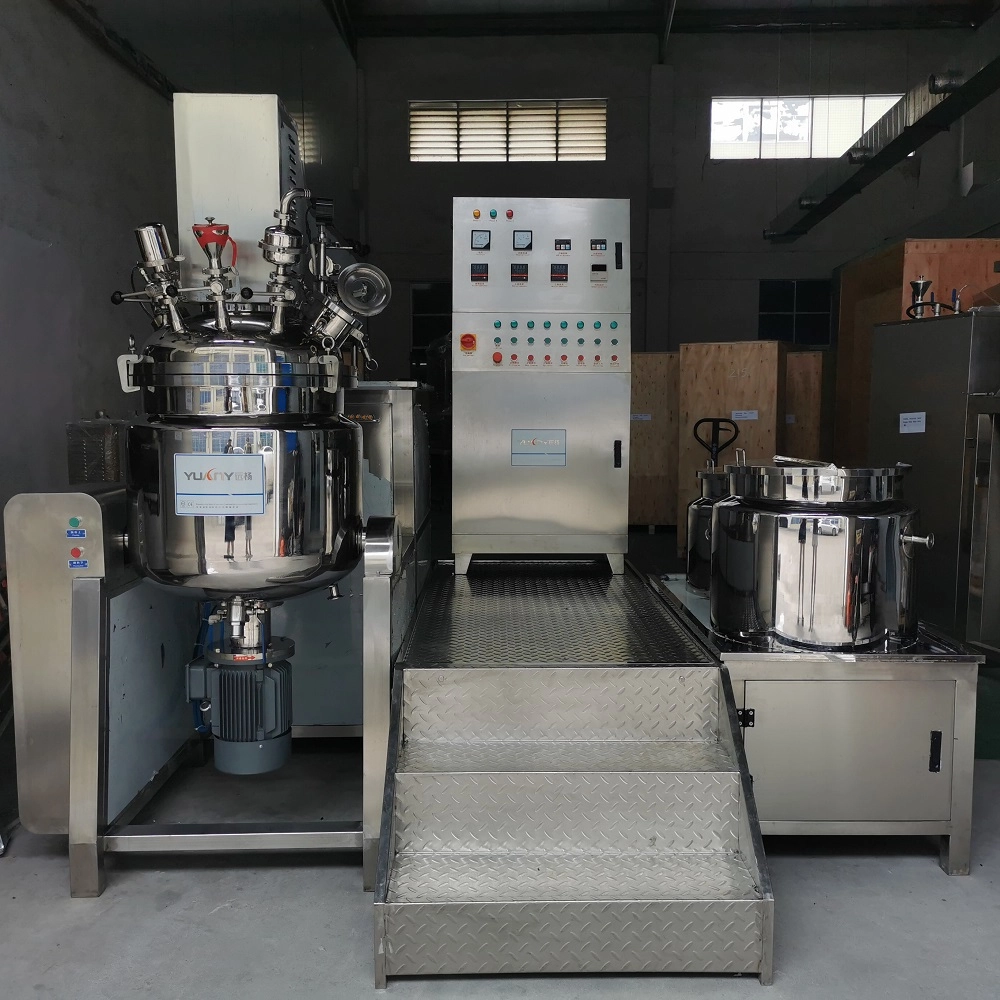

Yuanyang cosmetic making machine is a kind of vacuum emulsifying mixer, the most popular cosmetic machine for making cream, skin-care products, ointment, paste and emulsions.
Feature:
-
⦁ Composed of main emulsifying pot, a water pot, oil pot;
⦁ With hydraulic lifting system, vacuum system, electric control system;
⦁ Suitable for products of 10,000~50,000 cps viscosity;
⦁ Perfect particle size of 2 microns and evenly distributed.
Cosmetic Making Machine Introduction
The cosmetic-making machine can be simply called an emulsifier mixer or is often called a cosmetic mixer. When the materials are under the vacuum condition, it makes use of the high shear homogenizer to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between the stator and rotor by the strong energy of motion produced by the machine effect.
By the operation of shearing, centrifugal extruding, impacting, breaking, and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
This series of emulsion mixer is mainly applied in such industries as cosmetic skin care products, food industry, pharmaceutical industry, nanometre materials, electronics, fine chemical industry, etc.
The emulsifying effect of the vacuum emulsifying mixer is more prominent for materials of high viscosity and high solid content.
Cosmetic making machine: key features
Cosmetic Making Machine Characteristic
| Cosmetic-Making Machine | ||||||||
| Working capacity (L) | Material | Agitator power (KW) |
Speed (rpm) |
Homogenizer power (KW) |
Homogenizer speed (rpm) |
Water pot （L） |
Oil pot （L） |
Main pot system |
| 50L | SS304/316L | 1.1 | 0-65 | 3 | 0-3000 | 40 | 25 | Hydraulic lift |
| 100L | SS304/316L | 1.5 | 0-65 | 3 | 0-3000 | 60 | 50 | Hydraulic lift |
| 200L | SS304/316L | 2.2 | 0-65 | 4 | 0-3000 | 150 | 100 | Hydraulic lift |
| 300L | SS304/316L | 3 | 0-65 | 7.5 | 0-3000 | 250 | 120 | Hydraulic lift |
| 500L | SS304/316L | 4 | 0-65 | 11 | 0-3000 | 350 | 250 | Fixed lid |
| 1000L | SS304/316L | 5.5 | 0-65 | 15 | 0-3000 | 600 | 500 | Fixed lid |
| 2000L | SS304/316L | 7.5 | 0-65 | 18.5 | 0-3000 | 1500 | 1000 | Fixed lid |
| 3000L | SS304/316L | 11 | 0-65 | 22 | 0-3000 | 2000 | 1000 | Fixed lid |
| 5000L | SS304/316L | 15 | 0-65 | 37 | 0-3000 | 3000 | 2000 | Fixed lid |

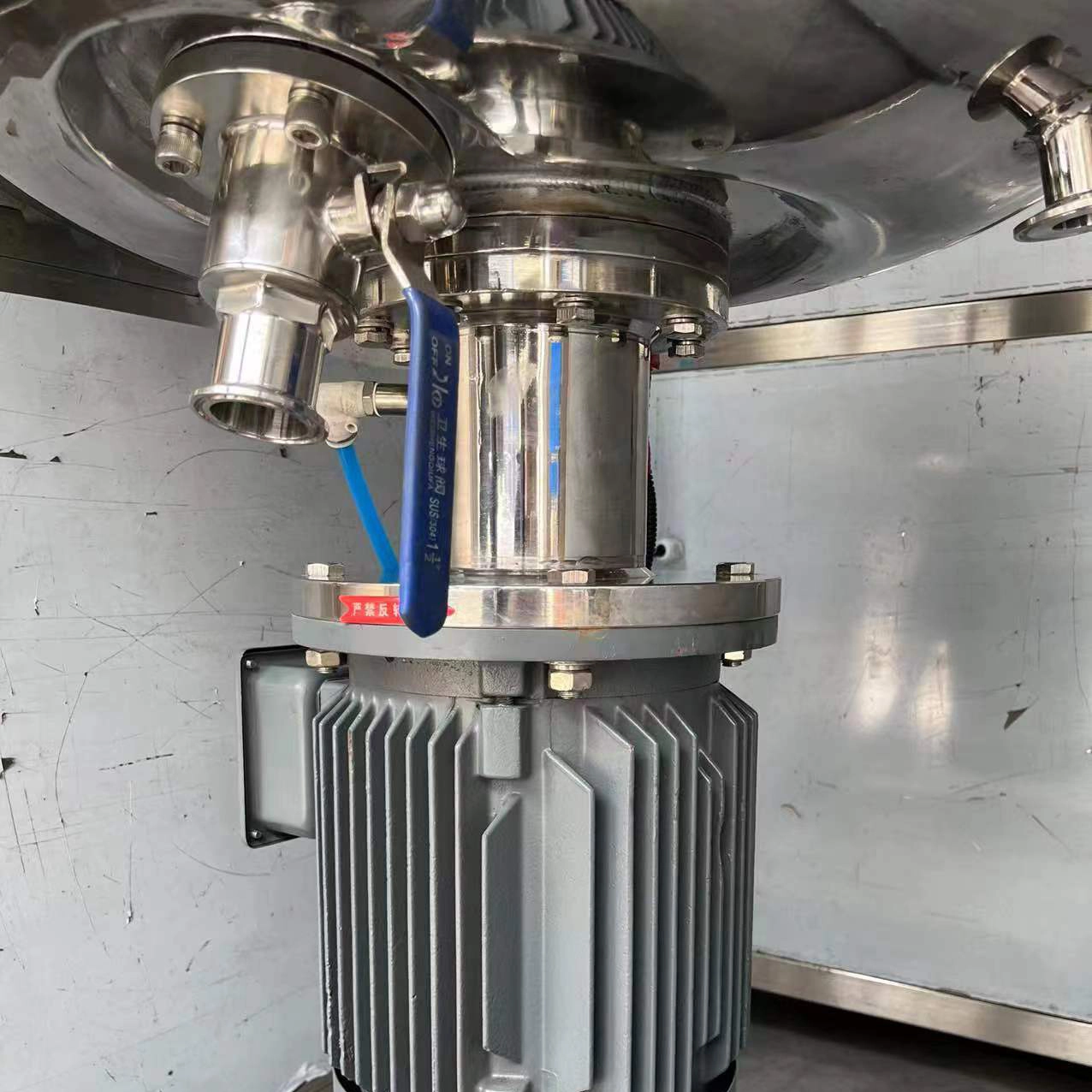

| Key functions include vacuuming, scrapers mixing, homogenizing, heating. Two ways of homogenizer installation: on top or at bottom Two ways of heating: electric heating and steam heating; steam heating requires a steam generator Water pot and oil pot are optional; choose according to actual needs. Other optional functions: circulation system, load cell system, water flow meter system |
||||||||
Cosmetic Making Machine General Application
Cosmetic Making Machine options
FAQs
Cosmetic Making Machine
Why water pot and oil pot are needed?
The combination of water pot and oil pot plays a crucial role for cosmetic production equipment, which ensure the stability of the emulsification process and product quality through pretreatment and precise control each phase materials.
⦁ Pretreatment
The water pot and oil are equipped with heating and dispersing function. Each phase can be dissolved,dispersed,heated before entering into the main emulsifying equipment. The pretreatment improves emulsification efficiency, reduces unnecessary mixing problems, and ensures that the material is in the best condition during emulsification
⦁ Precise control
Each phase is with a separated pot. Through the precise control system of water pot and oil pot, the materials can be added to the emulsion pot according to the preset ratio and speed, to ensure the uniformity and stability of the mixing process. This precise control helps to produce a high quality, consistent product.
Why vacuum system is necessary?
In the mixing process of cosmetic emulsifier, it is necessary to eliminate bubbles and prevent oxidation to ensure the quality of the mixture.
In a vacuum environment, there are following advantages:
⦁ Improve mixing efficiency
In a vacuum environment, the surface area of the mixture increases, and the interaction force between the substances will also increase, thus speeding up the mixing speed.
⦁ Prevent oxidation
In a vacuum environment, oxygen cannot enter the mixture, so it can effectively prevent the oxidation of the mixture.
⦁ Reduce bubbles
In a vacuum environment, the bubbles in the mixture will be drawn out, so that you can get a bubble-free mixture.
How does water phase and oil phase materials get into the main homogenizer mixer tank?
The cosmetic mixing machine is designed vacuum feeding system. The water and oil pots can be automatically sucked into main emulsifying mixer pot under vacuum condition by conveying pipes to ensure materials are protected from external contamination.
How to achieve vacuum environment?
The vacuum pump is a device used to generate vacuum, which can draw out the gas in the container to form a vacuum environment. Close wall pipe valves,only open the vacuum pipe pass-by valve,also open the water inlet of vacuum pump,then operate vacuum button. After the the tank get the standard pressure such -0.05Mpa (check the pressure gauge), stop the vacuum operation,close the pass-by valve.
Leave a message
Have any questions or concerns about our products? Please leave us a message here, and our team will get back to you promptly.
Cosmetic Making Machine
Yuanyang cosmetic making machine is a combined mixing equipment with a main vacuum homogenizer tank, a water tank, and an oil tank, which is an integrated equipment with a mixing, dispersing, homogenizing, emulsifying, vacuumizing and powder absorption system that is widely used in cosmetics, food, pharmaceutical, and chemical fields.
Features:
⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Small Business Vacuum Homogenizer
Yuanyang vacuum homogenizer is a mixing tank with a top scrapers mixing & bottom homogenizer and vacuum system. The vacuum mixer is widely used in cosmetics, food, pharmaceutical, and chemical fields.
Feature:
-
⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Vacuum Homogenizer for Sale
Yuanyang vacuum homogenizer is a homogenizer mixer with a vacuum system. The homogenizer is an integrated piece of equipment with mixing, dispersing, homogenizing, emulsifying, and powder absorption systems, which is widely used in the cosmetics, food, pharmaceutical, and chemical fields.
Feature:
-
⦁ With a fixed lid, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
Vacuum Emulsifying Mixer for Sale
Yuanyang vacuum emulsifying mixer is a kind of emulsifier machine, the most popular cosmetics production equipment for making cream, skin-care products, ointment, paste, and emulsions.
Features:
⦁ Composed of a main emulsifying pot, a water pot, and an oil pot.
⦁ With a hydraulic lifting system, vacuum system, and electric control system.
⦁ Suitable for products of 10,000~50,000 cps viscosity.
⦁ Perfect particle size of 2 microns and evenly distributed.
